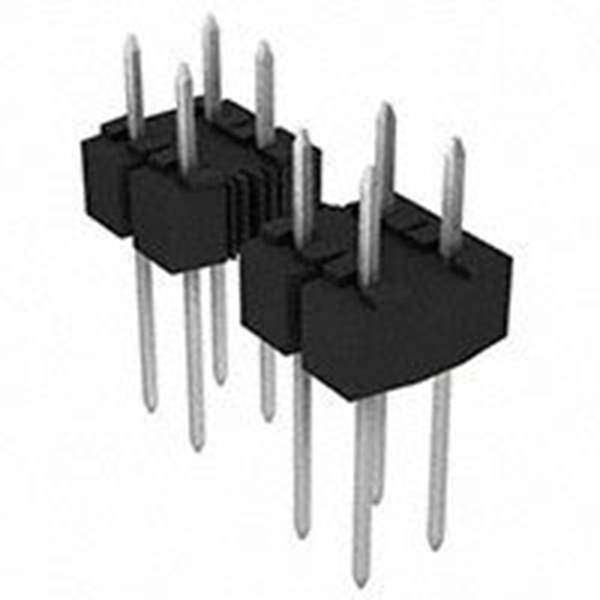

901310133 Molex, LLC
Same model may have multiple batches, images only for reference.

901310133

Part No 901310133
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 26POS .100" STR TIN
Datasheet
901310133 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Unshrouded
Number of Positions 26
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.266" (6.75mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length 0.478" (12.15mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1μin (3.00μm)
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications Automotive, General Purpose
Win Source Part Number 197066-901310133
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 901310133 CAD Model

Description

Product Overview

The 901310133 is a cutting-edge component ideal for advanced electronic applications, noted for its reliability and user-friendly integration.

Features and Benefits

  • Ultra-high-speed operation
  • Reduces energy usage and operational costs
  • Integrated protection features
  • Compact size for maximum design flexibility

Applications

  • Digital signage
  • Communication infrastructures
  • High-performance computing
  • Smart grid applications
