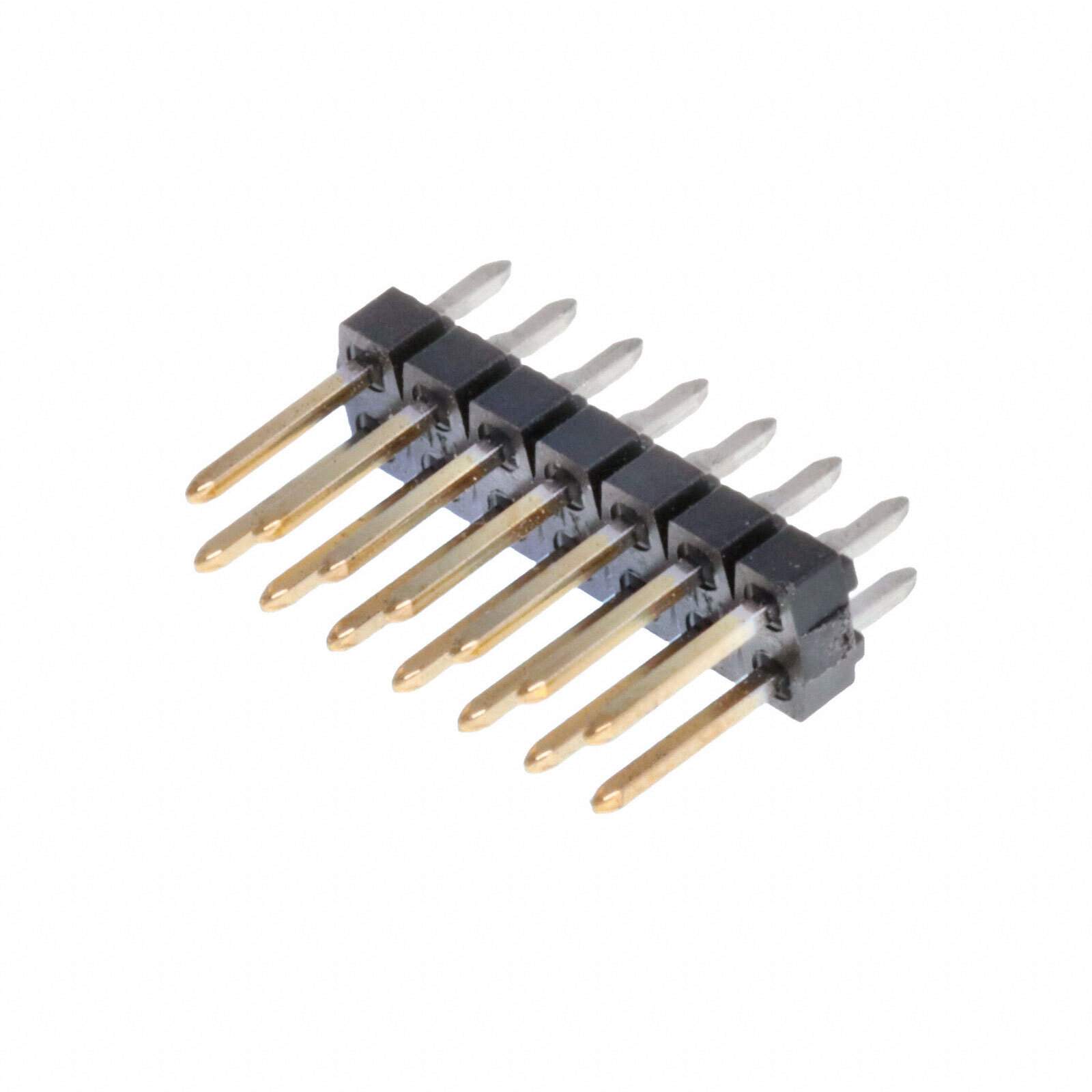

90131-0767

Name: 90131-0767
Brand: Molex, LLC
SKU: 1009047
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	90131-0767
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole C-Grid III™ Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Material	Brass
Contact Plating	Gold
Contact Resistance	20 mΩ
Country of Origin	SG
Current Rating	3 A
Gender	Male
Housing Color	Black
Housing Material	Plastic
Insulation Resistance	5 GΩ
Lead Free	Yes
Lead Pitch	2.54 mm
Material	Glass, Polyester
Maximum Operating Temperature	125 °C
Min Operating Temperature	-55 °C
Mount	Through Hole
Number of Circuits	14
Number of Contacts	14
Number of Poles	14
Number of Positions	14
Number of Rows	2
Orientation	Vertical
Packaging	Bulk
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage Rating	350 V
Voltage Rating (AC)	350 V
Voltage Rating (DC)	350 V
Working Voltage	350 V
Win Source Part Number	1009047-90131-0767
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 90131-0767 CAD Model

Alternative Products

Description

The Molex 1009047-90131-0767 is a circular connector housing that consists of 14 positions and contacts.

Positions/Contacts: 14
Pitch: 2.54mm
Voltage Rating: 350V
Current Rating: 3A
Contact Resistance: 20mΩ
Working Voltage: 350V
RoHS Compliant: Yes
Contact Plating: Gold
Mounting Type: Through-Hole
Packaging: Bulk
Ideal for: Circular connectors and housings
