Same model may have multiple batches, images only for reference.

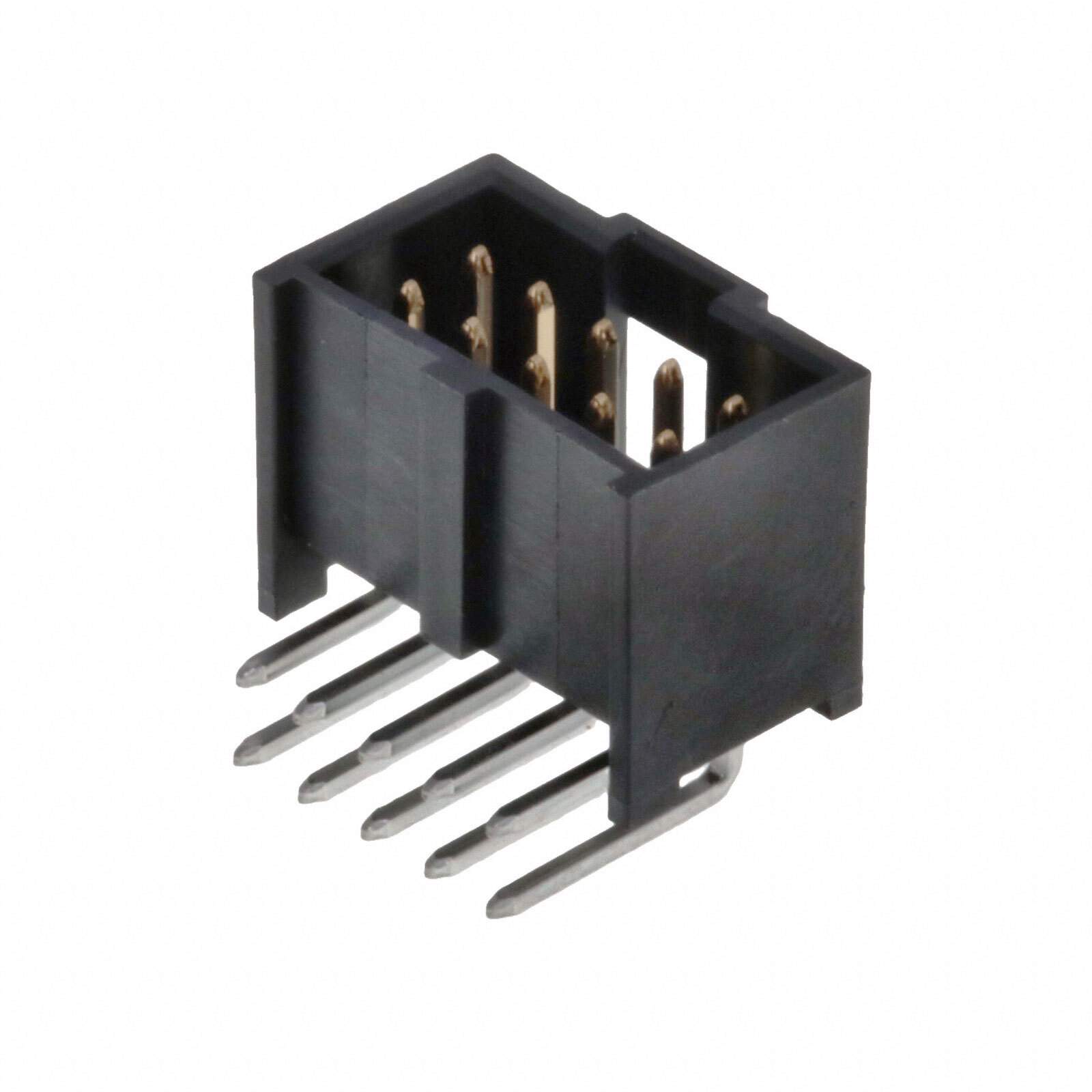

0901303210 Real Image
Same model may have multiple batches, images only for reference.

0901303210

Part No 0901303210
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.266" (6.75mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.384" (9.75mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 118.1µin (3.00µm)
Applications Automotive, General Purpose
Base Product Number 090130
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0901303210-E,90130-3210-E,90130-3210,090130-3210,090130-3210-E,901303210,WM8277,901303210-E
Standard Package 1,680
Win Source Part Number 1332763-0901303210
Ultra Librarian 3D Model Ultra Librarian 0901303210 CAD Model

Description

The Molex 1332763-0901303210 is a 10-position male pin header connector that is designed for use in automotive and general-purpose applications.

  • Positions: 10
  • Applications: Automotive and General-Purpose
  • Rows: 2
  • Loaded Positions: All
  • Contact Material: Brass
  • Voltage Rating: -
  • Mounting: Through-Hole, Right Angle
  • Shrouding: Shrouded-4 Wall
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish-Thickness-Mating: 15.0µin (0.38µm)
  • Contact Finish-Post: Tin
  • Contact Finish-Thickness-Post: 118.1µin (3.00µm)
  • Insulation Material: Polyester, Glass-Filled
  • Insulation Color: Black
  • Row Spacing-Mating: 0.100 inches (2.54mm)
  • Contact Length-Post: 0.114 inches (2.90mm)
  • Insulation Height: 0.384 inches (9.75mm)
  • Contact Shape: Square
