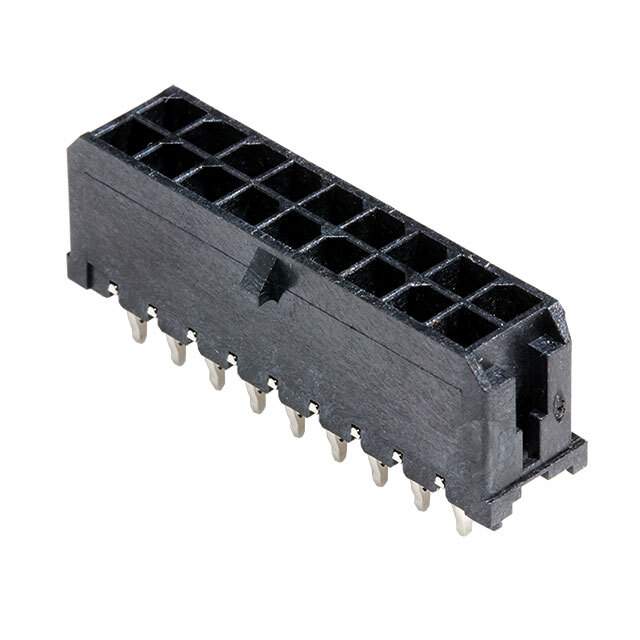

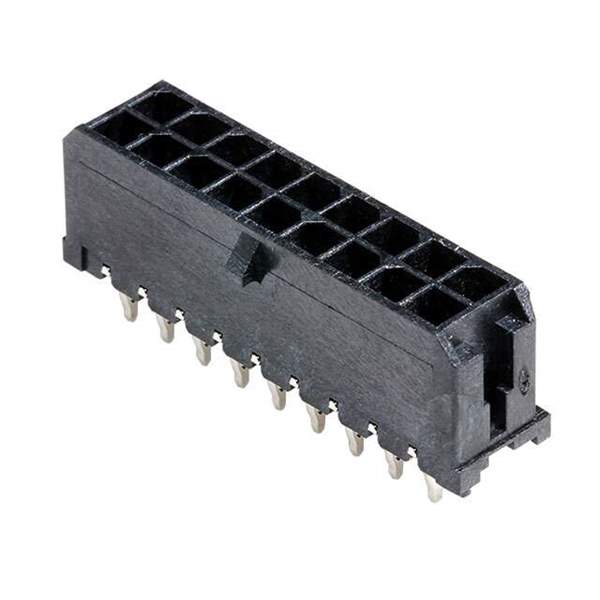

Same model may have multiple batches, images only for reference.

0449141801

Name: 0449141801
Brand: Molex, LLC
SKU: 1380824
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0449141801
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 18POS 3MM / Connector Header Through Hole 18 position 0.118" (3.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	Micro-Fit 3.0 CPI 44914
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Number of Positions	18
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	-
Insulation Height	0.390" (9.91mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin
Contact Material	Modified Tin/Brass Alloy
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Guide
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	General Purpose, Medical, Military, Telecommunications
Base Product Number	044914
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	720 pcs
Win Source Part Number	1380824-0449141801
Ultra Librarian 3D Model	Ultra Librarian 0449141801 CAD Model

Description

The 1380824-0449141801 is an 18-position male pin header connector from the Micro-Fit 3.0 CPI 44914 series.

Positions: 18
Application: Board-to-Board or Board-to-Cable
Feature: Board Guide
Material: Modified Tin/Brass Alloy
Finish: Tin
Voltage Rating: Up to 50V
Flammability Rating: UL94 V-0
Package: Tray
Mounting: Through-Hole
Manufacturer: Molex, LLC
Operating Temperature: Not Specified
ECCN: EAR99
REACH: Unaffected
