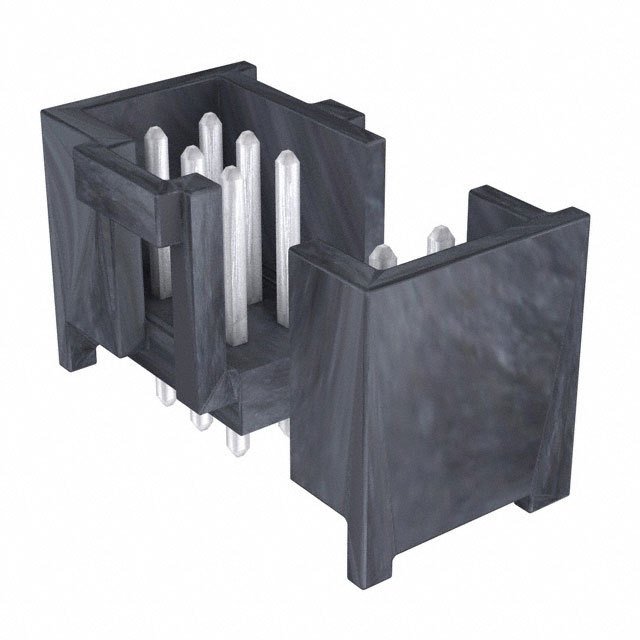

901301116

Name: 901301116
Brand: Molex, LLC
SKU: 43
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	901301116
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 16POS .100" STR TIN
Datasheet	901301116 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Tray
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.510" (12.95mm)
Insulation Height	0.429" (10.90mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1μin (3.00μm)
Contact Finish - Post	Tin
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Applications	Automotive, General Purpose
Win Source Part Number	197064-901301116
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 901301116 CAD Model

Description

Product Overview

Engineered for high performance, the 901301116 is an essential component for modern electronics. Its compact form factor makes it an excellent choice for space-sensitive designs.

Features and Benefits

Advanced circuit design for superior efficiency
Resilient in harsh conditions
Low power consumption
High compatibility with various systems

Applications

Wearable technology
Smart home devices
Portable electronics
Networking equipment
