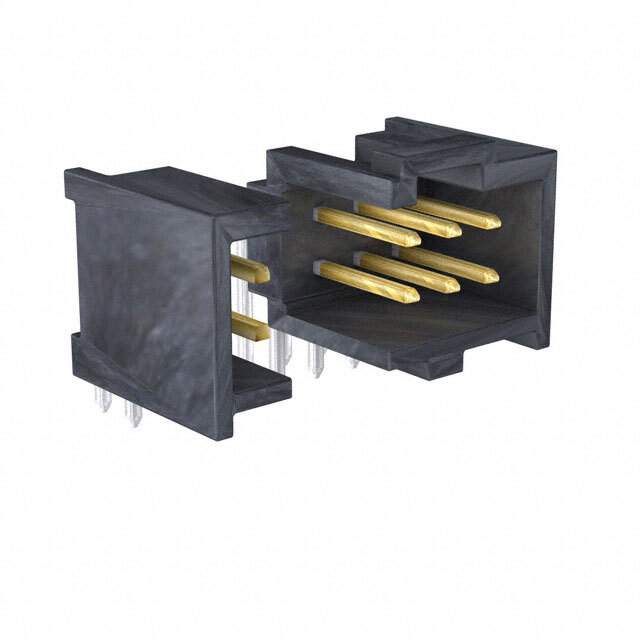

90130-3320 Real Image
Same model may have multiple batches, images only for reference.

90130-3320

Part No 90130-3320
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass
Contact Plating Gold
Country of Origin SK
Current Rating 3 A
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Polyester
Lead Free Yes
Number of Circuits 18
Number of Contacts 20
Number of Positions 20
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating 350 V
Voltage Rating (AC) 350 V
Win Source Part Number 1021662-90130-3320
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90130-3320 CAD Model

Description

This Molex connector has a pitch of 2.54 mm and 20 positions.

  • Pitch: 2.54 mm
  • Positions: 20
  • Current Rating: 3A
  • Voltage Rating: 350V
  • Connector Type: Male
  • Housing Material: Polyester
  • Contact Material: Brass
  • Contact Plating: Gold
  • Voltage Rating (AC): 350V
  • Voltage Rating (DC): 350V
  • Shape: Circular
  • Suitable for: Housings
