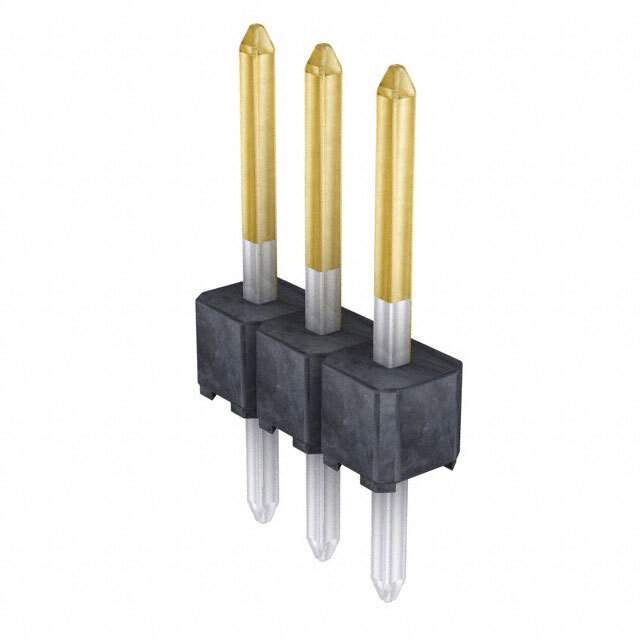

Same model may have multiple batches, images only for reference.

901200763

Name: 901200763
Brand: Molex, LLC
SKU: 424974
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	901200763
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 3POS .100" STR GOLD
Datasheet	901200763 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Bulk
Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board or Cable
Shrouding	Unshrouded
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.478" (12.15mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	118.1μin (3.00μm)
Applications	Automotive, General Purpose
Win Source Part Number	1010586-901200763
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 901200763 CAD Model

Alternative Products

Description

The Molex Header, Breakaway Connector is a male pin connector with a push-pull fastening type.

Insulation Material: Polyester and Glass-Filled
Flammability Rating: UL94 V-0
Application: Automotive and General Purpose
Style: Board-to-Board or Cable
Pitch-Mating: 2.54mm
Contact Finish-Mating Thickness: 15μin (0.38μm)
Contact Finish-Post: Tin
Contact Finish-Post Thickness: 118.1μin (3.00μm)
Shrouding: Unshrouded
Contact Length-Post: 0.114" (2.90mm)
Contact Overall Length: 0.478" (12.15mm)
Insulation Height: 0.098" (2.50mm)
Contact Shape: Square
Supply and Demand Status: Balanced
