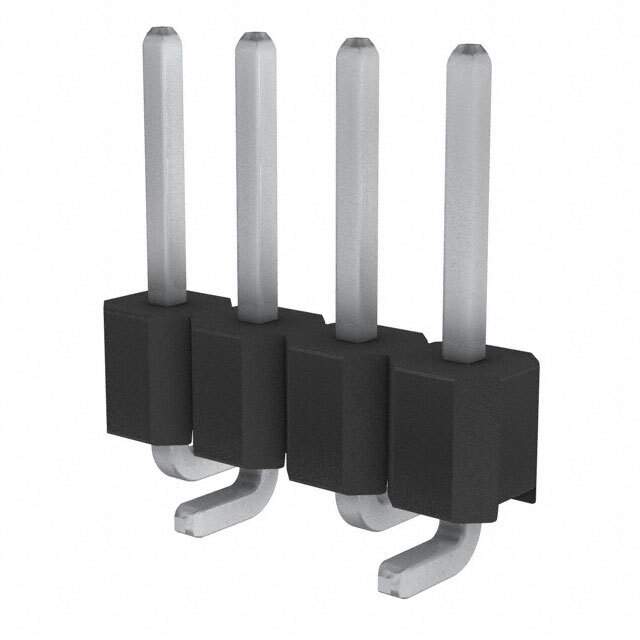

Same model may have multiple batches, images only for reference.

0878980426

Get a Quote

Part No	0878980426
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 4POS 2.54MM / Connector Header Surface Mount 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tube
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number	087898
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	87898-0426,878980426,087898-0426,WM8617
Standard Package	50
Win Source Part Number	1332917-0878980426
Ultra Librarian 3D Model	Ultra Librarian 0878980426 CAD Model

Description

The Molex 1332917-0878980426 is a male pin header connector designed for use in a variety of electronic applications.

Connector Type: Header connector type with a male pin contact
Fastening Type: Push-pull fastening type for secure connections
Positions: 4 positions
Pitch: 0.100 inches (2.54mm)
Mounting: Surface mount mounting
Contact Termination: Solder
Shrouded: Unshrouded
Compliance: RoHS3 compliant and unaffected by REACH regulations
Packaging: Tube packaging
Applications: Automotive, general purpose, lighting, medical, and telecommunications applications.
