Same model may have multiple batches, images only for reference.

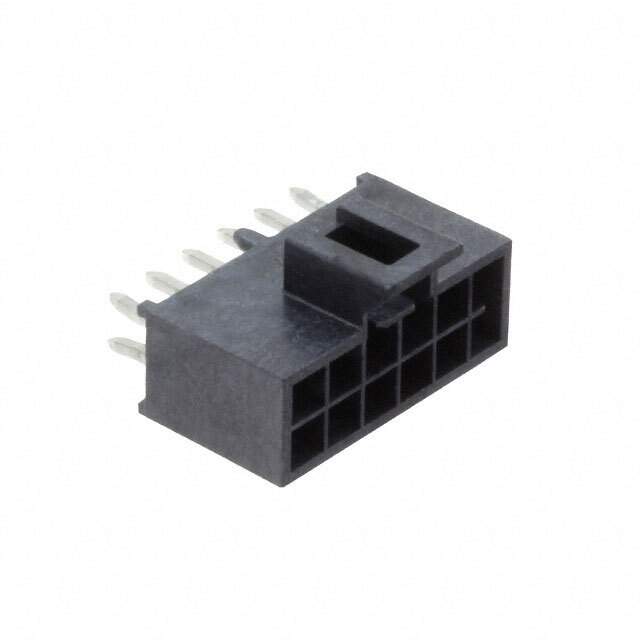

1053101212 Real Image
Same model may have multiple batches, images only for reference.

1053101212

Part No 1053101212
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.5MM / Connector Header Through Hole 12 position 0.098" (2.50mm)
Datasheet
1053101212 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.356" (9.05mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Black
Voltage Rating 250V
Mated Stacking Heights 21.30mm
Contact Finish Thickness - Post 59.0µin (1.50µm)
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Base Product Number 105310
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM15058,105310-1212
Standard Package 102
Win Source Part Number 1333064-1053101212
Ultra Librarian 3D Model Ultra Librarian 1053101212 CAD Model

Description

This Molex Rectangular Connector is a male, 12-contact solder connector that is ideal for use in electronic circuits.

  • Termination: Kinked Pin
  • Voltage Rating: 250V
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Contact Material: Brass
  • Pitch: 0.098" (2.50mm)
  • Contact Finish - Mating: Gold
  • Contact Finish - Post: Tin
  • Applications: Automotive, General Purpose, Industrial, Medical, Military, and Telecommunications
  • Package: Tray
  • Mounting: Through Hole
  • Temperature Range: -40°C to 105°C
  • ROHS3 Compliant: Yes
