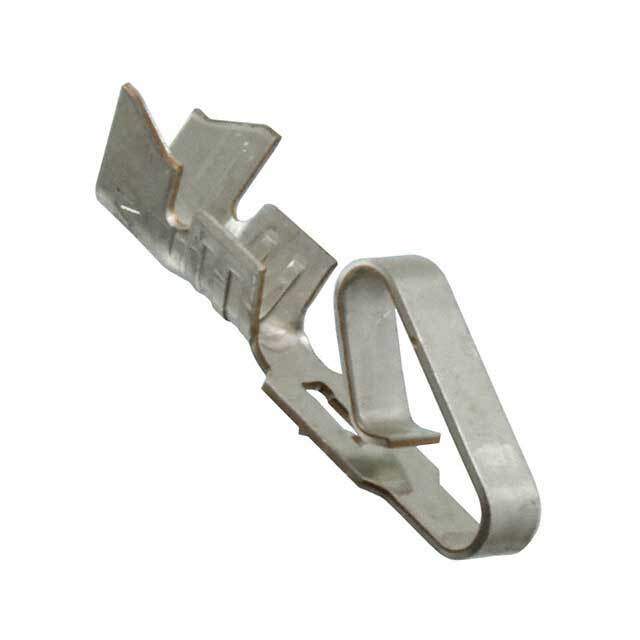

8520072 Real Image
Same model may have multiple batches, images only for reference.

8520072

Part No 8520072
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr Molex
Series KK 2478
Package Bulk
Pin or Socket Non-Gendered
Contact Termination Crimp
Wire Gauge 18-24 AWG
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Base Product Number 000852
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1314908-8520072
Ultra Librarian 3D Model Ultra Librarian 8520072 CAD Model

Description

The Molex KK 2478 series rectangular connector contact is a crimp type contact with a contact finish of tin.

  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Wire Gauge: 18-24 AWG
  • Packaging: Bulk
  • Pin or Socket: Non-Gendered
  • ECCN: EAR99
  • REACH: Unaffected by REACH
  • HTSUS: 8536.90.4000
