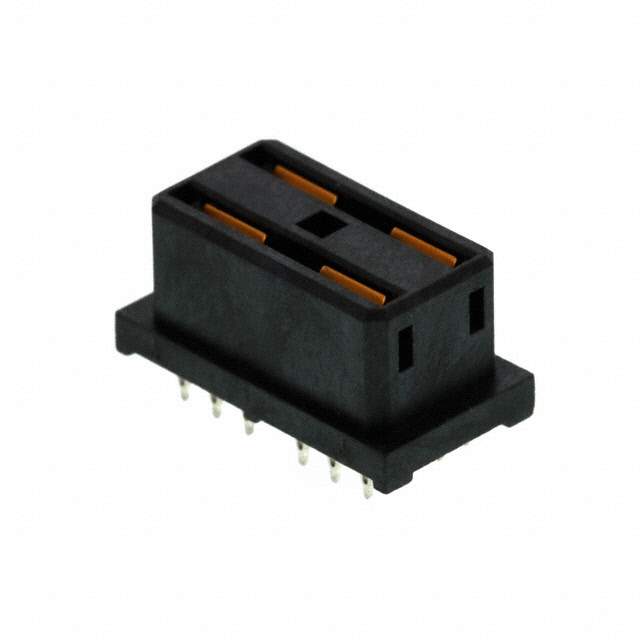

78214-1001 Real Image
Same model may have multiple batches, images only for reference.

78214-1001

Part No 78214-1001
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Impact 4 Pair, Vertical Power Receptacle, Press-Fit, LCP, Glass Filled UL94-V0, Black, Lead-Free
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Country of Origin SG
Current Rating 20 A
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Halogen Free Low Halogen
Maximum Operating Temperature 85 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 4
Number of Pairs 4
Number of Positions 4
Number of Rows 2
Orientation Vertical, Right Angle
Pitch 2 mm
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Shielding Unshielded
Termination Through Hole
Voltage Rating 250 V
Win Source Part Number 1002641-78214-1001
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 78214-1001 CAD Model

Description

The Molex, LLC electronic component with Win Source Part Number 1002641-78214-1001 is a low halogen, compliant RoHS product.

  • Positions: 4
  • Rows: 2
  • Pitch: 2 mm
  • Voltage Rating: 250 V
  • Current Rating: 20 A
  • Gender: Receptacle
  • Shielded: Unshielded
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -55 °C
