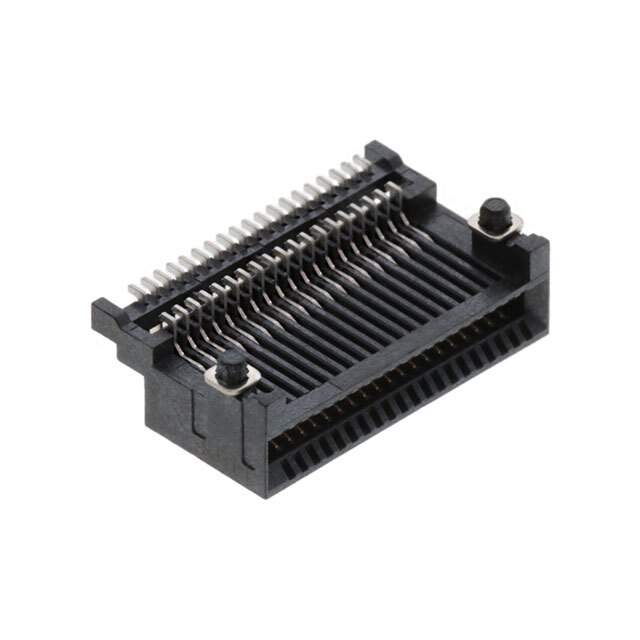

75586-0103 Real Image
Same model may have multiple batches, images only for reference.

75586-0103

Part No 75586-0103
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Conn I-Pass RCP 38 POS 0.8mm Solder RA SMD 38 Terminal 1 Port Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Country of Origin US
Current Rating 500 mA
Depth 11.5 mm
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Housing Color Black
Housing Material Thermoplastic
Length 18.2 mm
Material Thermoplastic
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 30 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 38
Number of Ports 1
Number of Positions Loaded 38
Number of Rows 2
Orientation Right Angle
Pitch 800 µm
Plating Tin
RoHS Compliant
Shielding Unshielded
Termination Solder
Voltage Rating (AC) 30 V
Win Source Part Number 999488-75586-0103
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 75586-0103 CAD Model

Description

The Molex, LLC 895188 is a female connector that has a pitch of 800 µm and a number of positions loaded of 38.

  • Connector Type: Female Connector
  • Pitch: 800 µm
  • Positions Loaded: 38
  • Current Rating: 500 mA
  • Maximum Operating Temperature: 80 °C
  • Length: 18.2 mm
  • Depth: 11.5 mm
  • Number of Circuits: 38
  • Voltage Rating (AC): 30 V
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
  • Halogen Content: Low
