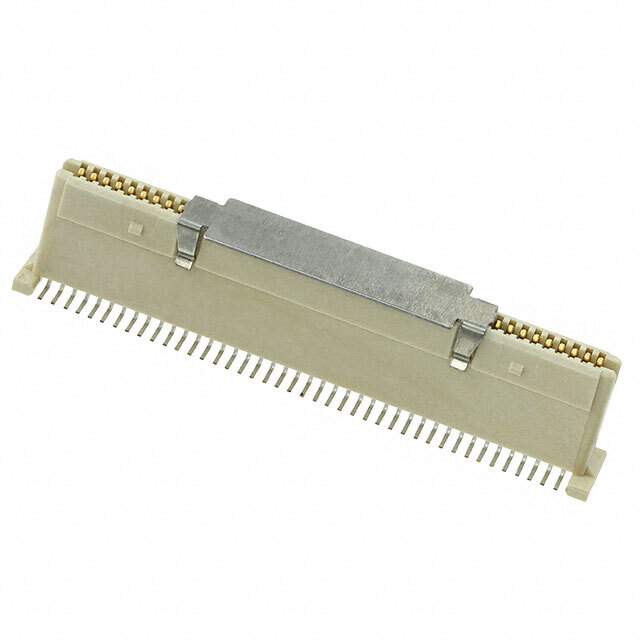

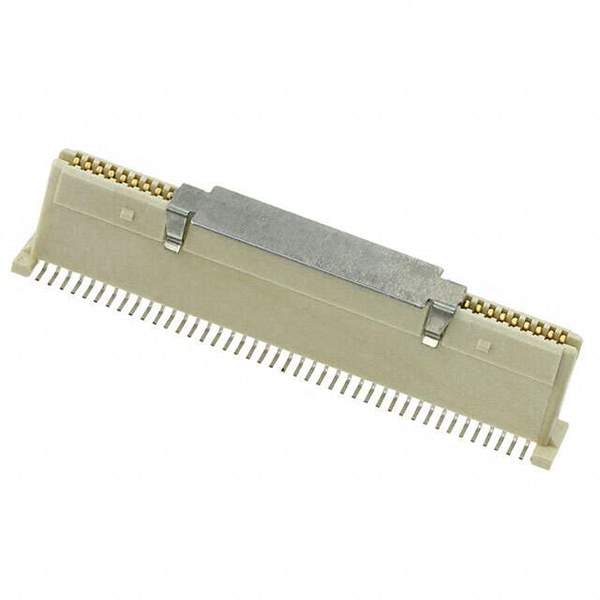

0717423003

Name: 0717423003
Brand: Molex, LLC
SKU: 1333094
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0717423003
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 84POS SMD GOLD / 84 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	84
Pitch	0.039" (1.00mm)
Number of Rows	2
Mounting	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	13mm, 15mm
Height Above Board	0.406" (10.30mm)
Base Product Number	071742
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM3499DKR,WM3499TR,717423003,071742-3003,71742-3003,WM3499CT
Standard Package	310
Win Source Part Number	1333094-0717423003
Ultra Librarian 3D Model	Ultra Librarian 0717423003 CAD Model

Description

The Molex 1333094-0717423003 is a high-quality rectangular connector array that is designed to provide reliable performance for a range of electronic applications.

Pitch: 0.039 inches
Positions: 84
Application: Mezzanine (Board to Board)
Contact Finish: Gold
Mounting Type: Surface Mountable
Board Guide: Yes
Height Above Board: 0.406 inches
