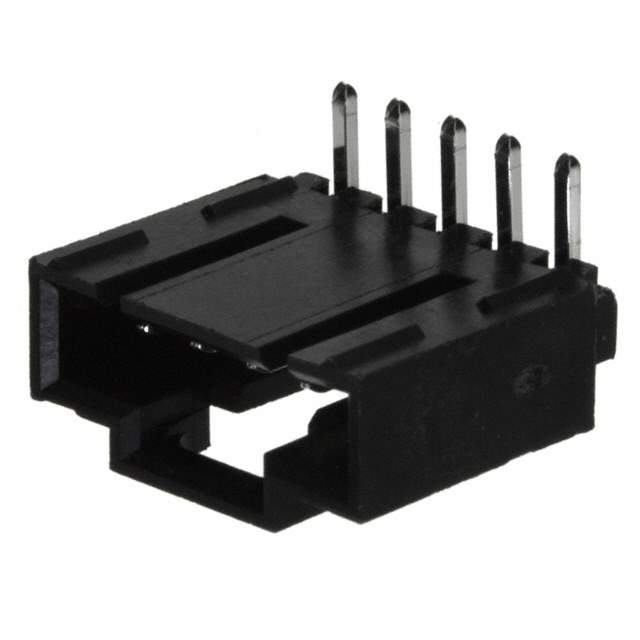

705530039

Name: 705530039
Brand: Molex, LLC
SKU: 764640
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	705530039
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HDR RT ANG 5POS .100 TIN
Datasheet	705530039 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Series	SL 70553
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.215" (5.45mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	150μin (3.81μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Operating Temperature Range	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	250V
Contact Finish Thickness - Post	150μin (3.81μm)
Applications	Automotive, General Purpose, Industrial, Medical
Win Source Part Number	764640-705530039
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 705530039 CAD Model

Description

The SL 70553 series connector from Molex, LLC is a male pin header connector with 5 positions and a pitch of 0.100 inches (2.54mm).

Operating Temperature Range: -40°C to 105°C
Termination: Solder
Fastening Type: Latch Holder
Contact Material: Phosphor Bronze
Voltage Rating: 250V
Material Flammability Rating: UL94 V-0
