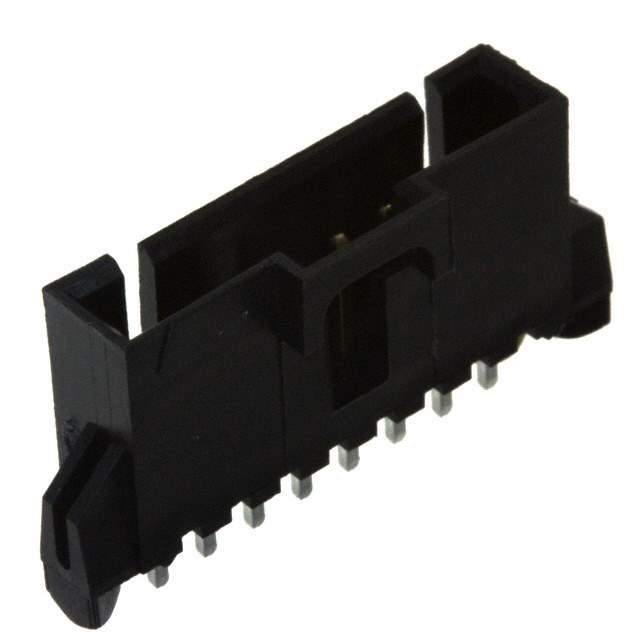

Part No 0705450042
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 2.54MM / Connector Header Through Hole 8 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.470" (11.94mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 070545
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 70545-0042,WM4237-ND,WM4237,A-70545-0042,705450042,WM4148,WM4237INACTIVE
Standard Package 19
Win Source Part Number 1332792-0705450042
Ultra Librarian 3D Model Ultra Librarian 0705450042 CAD Model

Description

The 1332792-0705450042 is an 8-position male pin header connector manufactured by Molex.

  • Pitch-Mating: 0.100" (2.54mm)
  • Applications: Board-to-Cable/Wire
  • Shrouded: 4 Walls
  • Mounting: Through-Hole
  • Contact Finish-Mating: Gold
  • Contact Finish-Post: Tin
  • Insulation Material: Polyester and Glass-Filled
  • Insulation Color: Black
  • Contact Length-Mating: 0.240" (6.10mm)
  • Contact Length-Post: 0.130" (3.30mm)
  • Overall Contact Length: 0.470" (11.94mm)
  • Insulation Height: 0.465" (11.80mm)
  • Voltage: 250V
  • Temperature Range: -40°C to 105°C
  • Applications: Automotive, General Purpose, Industrial, and Medical Equipment
