Same model may have multiple batches, images only for reference.

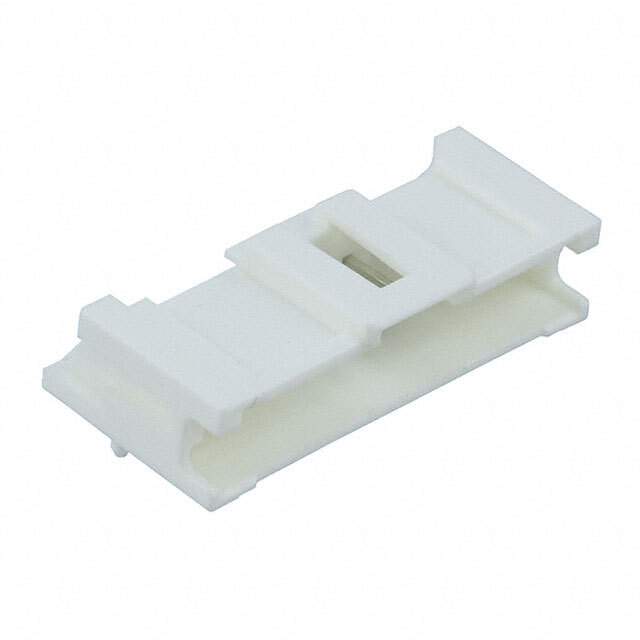

55935-1010 Real Image
Same model may have multiple batches, images only for reference.

55935-1010

Part No 55935-1010
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 10 POS 2mm Solder RA Thru-Hole MicroClasp™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Contact Material Brass
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 3 A
Flammability Rating UL94 V-0
Glow Wire Compliant Non-compliant
Insulation Resistance 1 GΩ
Lead Pitch 2 mm
Material Glass, Polyester
Max Current Rating 3 A
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Poles 10
Number of Rows 1
Orientation Right Angle
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536694040
Termination Solder
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Working Voltage 250 V
Win Source Part Number 1039297-55935-1010
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 55935-1010 CAD Model

Description

The 55935-1010 from Molex, LLC is a circular connector housing with a pitch of 2mm and a right-angle orientation.

  • Pitch: 2mm
  • Orientation: right-angle
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -25 °C
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Contact Resistance: 20 mΩ
  • Insulation Resistance: 1 GΩ
  • Number of Contacts: 10
  • Number of Circuits: 10
  • Supply and Demand Status: shortage
  • Suitable for: various electronic applications
