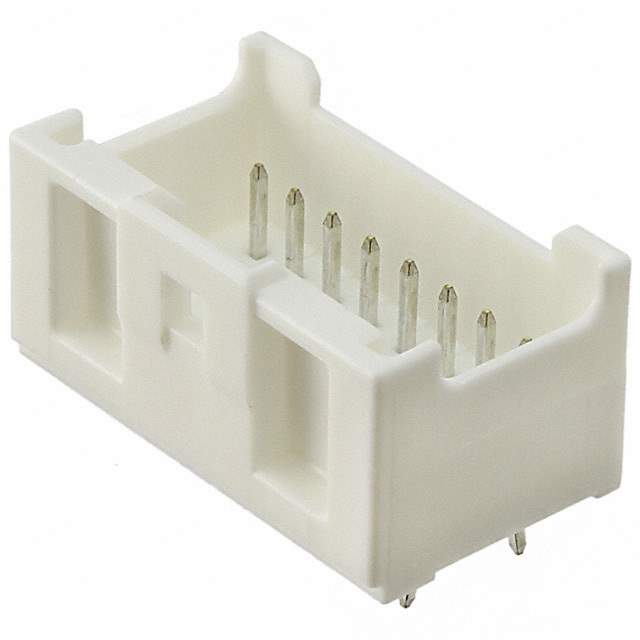

The Molex 55917-1610 is a PicoBlade connector housing. This connector is part of the Molex PicoBlade series, renowned for its miniature size, secure locking mechanism, and suitability for high-density applications where space is limited.

Applications

• Consumer Electronics: Typically found in devices like smartphones, digital cameras, and other portable electronics for internal board-to-board or wire-to-board connections.
• Industrial Control: Utilized in industrial equipment and control systems where compact and reliable connections are necessary.
• Robotics: Incorporated into robotics applications for connecting sensors, motors, and control modules within a small footprint.
• Medical Devices: Employed in medical equipment for internal connections where space is constrained and reliability is paramount.
• Data Communications: Used in networking and telecommunications equipment for signal and power connections.

Features

• Number of Circuits: 16
• Pitch: 1.25mm pitch for high-density packaging.
• Housing Material: Durable plastic construction, typically UL 94V-0 rated for flammability resistance.
• Color: Natural (usually white or off-white).
• Polarization: Features a polarized design to prevent incorrect mating.
• Locking Mechanism: Employs a friction lock or similar mechanism to ensure secure retention.

Benefits

• Space Saving: The compact 1.25mm pitch allows for high-density connections in space-constrained applications, optimizing board space.
• Secure Connection: The locking mechanism ensures a reliable connection, preventing accidental disconnections, especially in vibration-prone environments.
• Easy Assembly: Designed for straightforward assembly with compatible Molex PicoBlade crimp terminals.
• Versatile: Suitable for a wide range of applications requiring small, reliable, and high-density connections.
• Durable: Constructed from high-quality materials, providing long-lasting performance and resistance to environmental factors.

Additional Details

The Molex 55917-1610 PicoBlade connector housing is designed to be used with Molex PicoBlade crimp terminals. These terminals are crimped onto wires and then inserted into the housing. The housing provides insulation and protection for the terminals and ensures proper alignment when mated with a corresponding header or receptacle.

The PicoBlade series is known for its low profile and compact size, making it an ideal solution for applications where minimizing space and weight is critical. It is designed for automated assembly processes, contributing to enhanced manufacturing efficiency. Proper handling and storage are recommended to maintain optimal performance and reliability. The wire gauge typically used with these connectors ranges from 26 AWG to 32 AWG, depending on the current requirements of the application.
