Same model may have multiple batches, images only for reference.

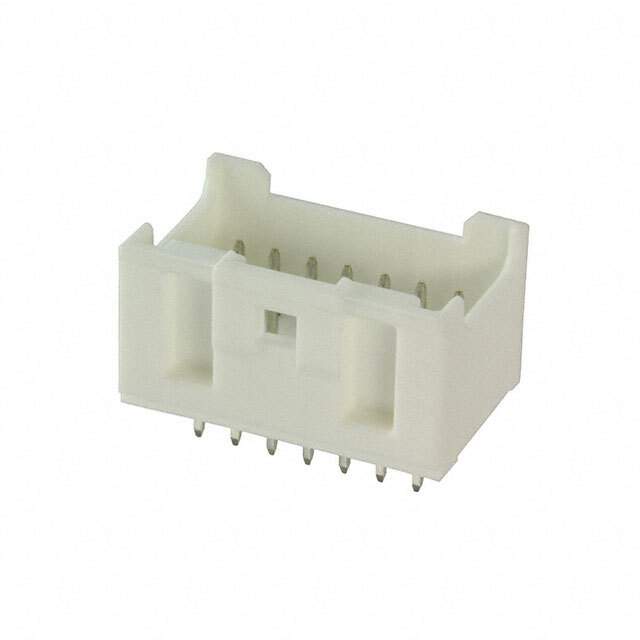

55917-1430 Real Image
Same model may have multiple batches, images only for reference.

55917-1430

Part No 55917-1430
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.00mm Pitch MicroClasp WTB Header Dual Row Vertical 14 Circuits without PCB Locator
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Contact Material Brass
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin VN
Current Rating 3 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Free Lead Free
Lead Pitch 2 mm
Material Glass, Polyester
Max Current Rating 3 A
Max Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Through Hole
Number of Circuits 14
Number of Contacts 14
Number of Poles 14
Number of Positions 14
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Termination Through Hole
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Working Voltage 250 V
Win Source Part Number 1216689-55917-1430
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 55917-1430 CAD Model

Description

The Molex LLC 1216689-55917-1430 is a male circular connector housing that is designed to have 14 contacts.

  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
  • Housing Material: Polyester
  • Contact Material: Brass
  • Contact Resistance: 20 mΩ
  • Insulation Resistance: 1 GΩ
  • Voltage Rating: 250 V
  • Current Rating: 3 A
  • Termination Type: Through-Hole
  • Pitch: 2 mm
