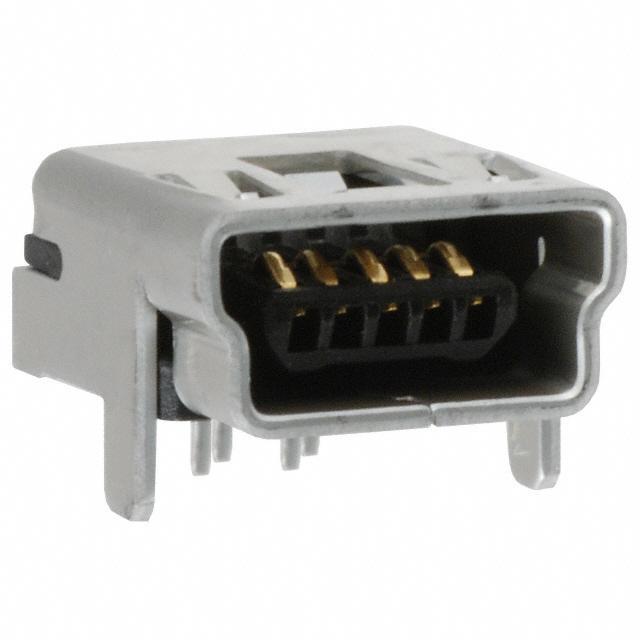

54819-0519

Part No 54819-0519
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description Conn Mini USB 2.0 Type B F 5 POS 0.8mm Solder RA Thru-Hole 5 Terminal 1 Port USB OTG Tray / CONN USB RECEPTACLE 5POS RT ANG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0 OTG
Mounting Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Temperature Range - Operating -20°C to 85°C
Number of Ports 1
Current Rating 1A
Voltage Rating 30V
Mating Cycles 5000
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 197782-54819-0519
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 54819
Introduction Date June 17, 2010
ECCN EAR99
Country of Origin China, Japan, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 54819-0519 CAD Model

Description

54819-0519 from Molex, LLC is a connector component in the USB, DVI, HDMI Connectors category, typically considered for data and interface designs where reliable board-level connectivity is important. Engineers may evaluate parts in this category for consumer electronics, embedded systems, industrial devices, peripherals, and interface modules that require standardized external I/O connections. Molex is widely recognized for interconnect solutions, making this part relevant for designs that prioritize established sourcing channels and connector ecosystem support. The current lifecycle status for 54819-0519 is listed as unknown, so design teams should confirm whether the part is active, nearing end-of-life, or subject to allocation before locking it into new programs. RoHS compliance information is not available in the provided data, and engineers should verify material compliance, exemptions, and documentation directly through the official datasheet, manufacturer declarations, or authorized distribution sources before procurement or regulatory release.
