533980871

Part No 533980871
Manufacturer Molex, LLC
Catalog Rectangular Connectors

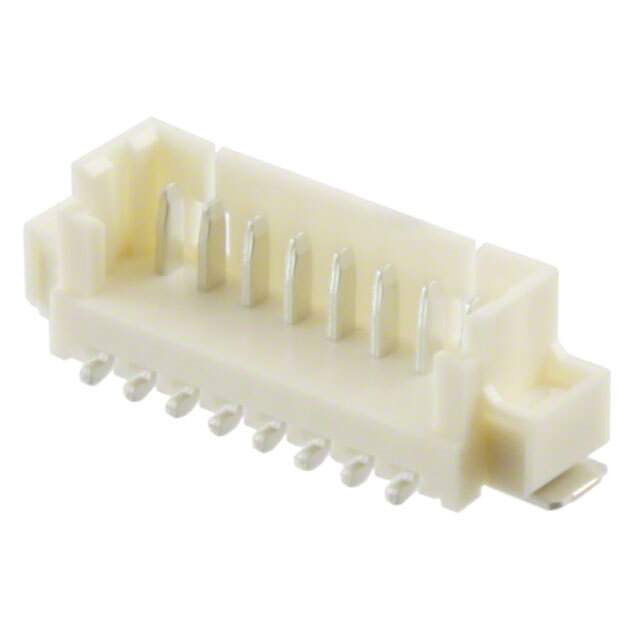

Description CONN HEADER 8POS 1.25MM VERT SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.185" (4.70mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39μin (1.00μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications Automotive, General Purpose, Industrial, Medical
Win Source Part Number 058107-533980871
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 533980871 CAD Model

Description

Product: 533980871

The 533980871 is a highly versatile electronic component suitable for a wide range of applications. Engineered for performance and reliability, this component ensures seamless integration into various systems.

  • Applications:
  • Consumer Electronics
  • Automotive Systems
  • Industrial Automation
  • Communication Devices
  • Features and Benefits:
  • High durability for extended usage
  • Compact design for easy installation
  • Compatible with multiple interfaces
  • Energy efficient

Additional Details: Its robust construction enhances stability and reduces maintenance requirements, making it ideal for demanding environments.
