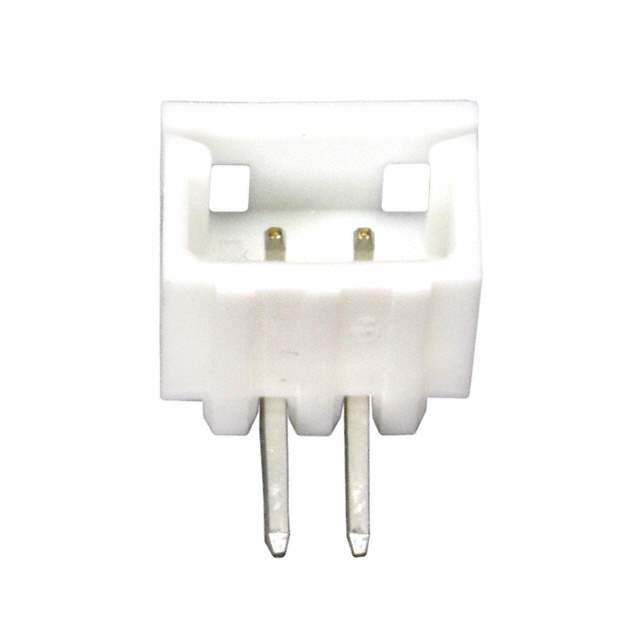

533250260 Real Image
Same model may have multiple batches, images only for reference.

533250260

Part No 533250260
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 2MM 2POS R/A TIN / Conn Shrouded Header (4 Sides) HDR 2 POS 2mm Solder RA Thru-Hole Mi II™ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Mi II 53325
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.135" (3.45mm)
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.191" (4.85mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Win Source Part Number 799321-533250260
Popularity Medium
Supply and Demand Status Limited
Family Name 53325
Introduction Date July 08, 2010
ECCN EAR99
Country of Origin Japan, Malaysia
Halogen Free Not Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 533250260 CAD Model

Description

The Molex Header Connector is a male pin contact type connector with 2 positions. Molex

  • Mounting Style: Through Hole, Right Angle
  • Lock: Detent
  • Connector Type: Header
  • Positions Loaded: All
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Style: Board to Cable/Wire
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Contact Finish (Post): Tin
  • Shrouding: 4 Walls
  • Insulation Color: Natural
  • Contact Shape: Square
  • Supply and Demand Status: Limited
