Same model may have multiple batches, images only for reference.

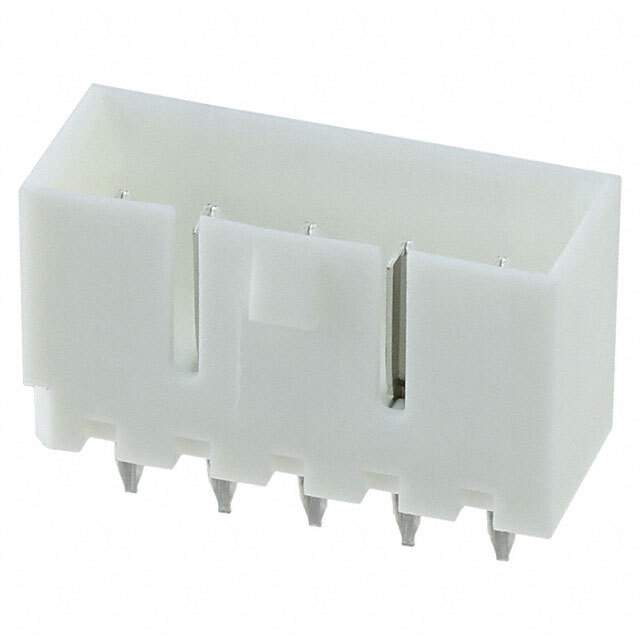

53258-0529 Real Image
Same model may have multiple batches, images only for reference.

53258-0529

Part No 53258-0529
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Mighty-SPOX Header, 3.50mm Pitch, Vertical, 5 Circuits, Brass (CuZn) Contact
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin KR
Current Rating 5.5 A
Gender Male
Glow Wire Compliant Non-compliant
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 5
Number of Contacts 5
Number of Positions 5
Number of Rows 1
Orientation Vertical
Pitch 3.5 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Win Source Part Number 972648-53258-0529
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 53258-0529 CAD Model

Description

The Molex, LLC 972648-53258-0529 circular connector housing has 5 positions and a pitch of 3.5 mm.

  • Positions: 5
  • Pitch: 3.5 mm
  • Row: Single
  • Termination: Solder
  • Contact Material: Brass
  • Voltage Rating: 250 V
  • Current Rating: 5.5 A
  • Contacts: 5
  • Gender: Male
  • Orientation: Vertical
  • Contact Plating: Tin
  • Contact Resistance: 10 mΩ
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105 °C
