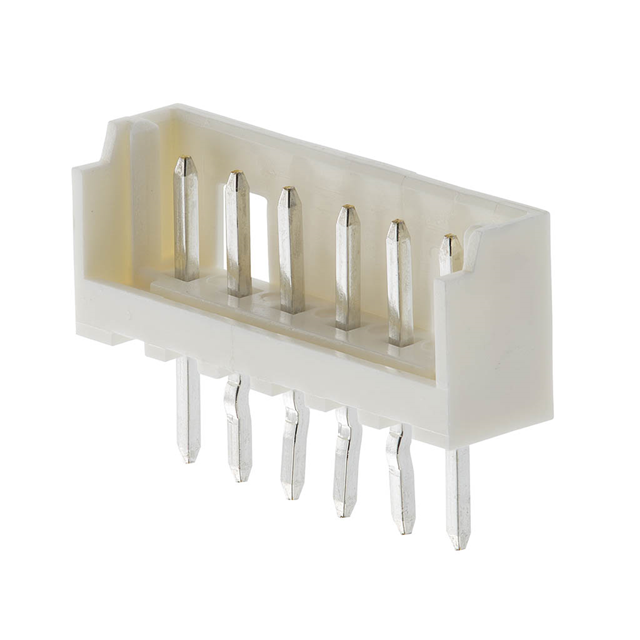

Same model may have multiple batches, images only for reference.

0532531570

Name: 0532531570
Brand: Molex, LLC
SKU: 1332830
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0532531570
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 15POS 2MM / Connector Header Through Hole 15 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	15
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.331" (8.40mm)
Insulation Height	0.217" (5.51mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Mated Stacking Heights	5.7mm
Applications	Automotive, General Purpose
Base Product Number	053253
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	53253-1570-ND,WM24310,532531570,53253-1570,053253-1570
Standard Package	1
Win Source Part Number	1332830-0532531570
Ultra Librarian 3D Model	Ultra Librarian 0532531570 CAD Model

Description

The Molex 1332830-0532531570 is a 15-position header connector designed for board-to-cable or wire applications.

Manufacturer: Molex
Positions: 15
Application: Board-to-cable or wire
Rows: 1
Contact Type: Male pins
Fastening Type: Detent lock
Voltage Rating: -
Flammability Rating: UL94 V-0
Contact Material: Brass
Contact Finish: Tin
Applications: Automotive and general-purpose
Mounting: Through-hole
Insulation Material: Polyamide (PA), Nylon
Pitch: 0.079" (2.00mm)
Mated Stacking Height: 5.7mm
Feature: Shrouded with 3 walls
Contact Length: 0.331" (8.40mm)
ROHS3 Compliant: Yes
Packaging: Tray
