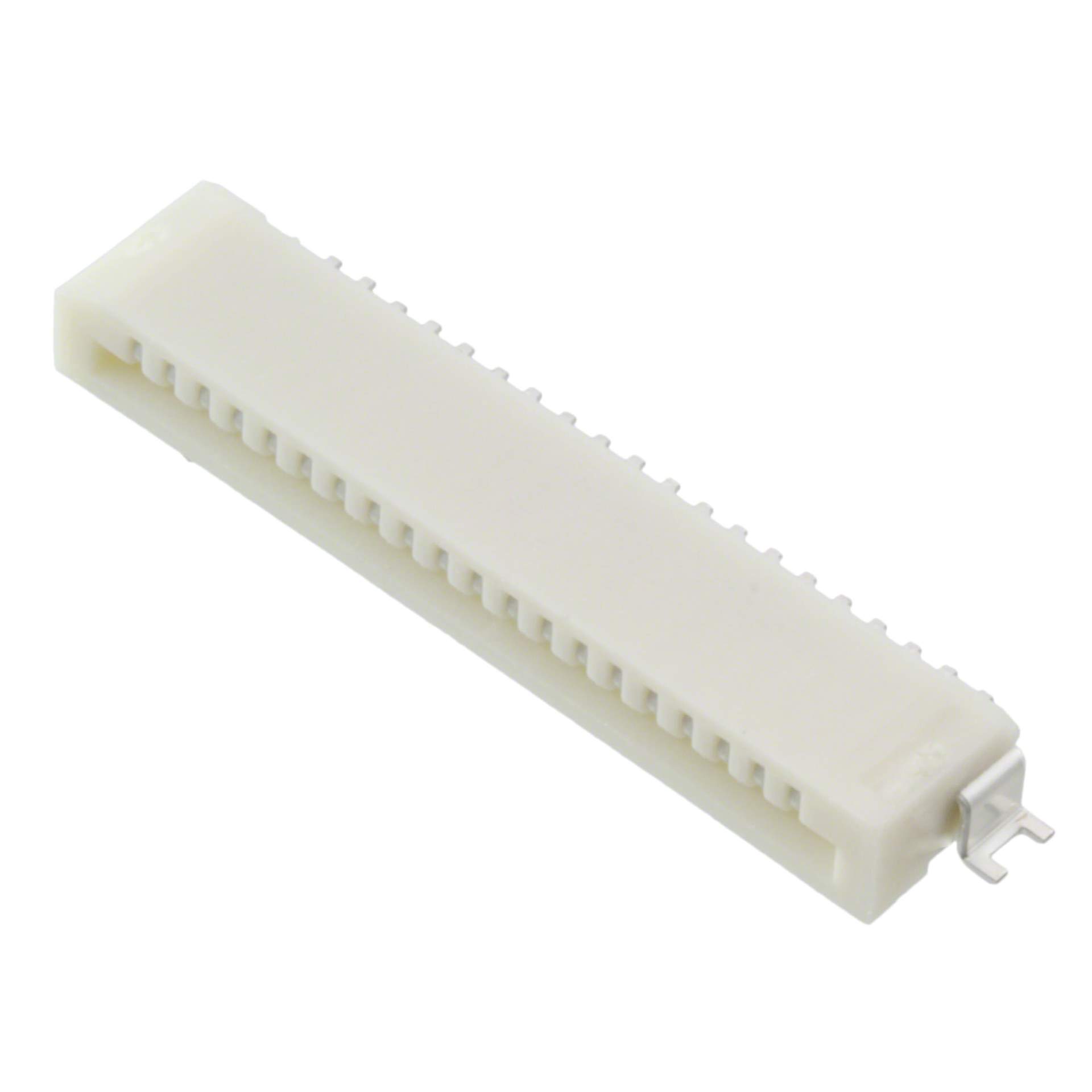

52793-2070 Real Image
Same model may have multiple batches, images only for reference.

52793-2070

Part No 52793-2070
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.00mm Pitch Easy-On FFC/FPC Connector, Surface Mount, Right-Angle, Non-ZIF, Top Contact Style, 20 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Top
Contact Material Bronze
Contact Plating Tin
Country of Origin MY
Current Rating 500 mA
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Housing Material Polyphenylene
Lead Pitch 1 mm
Material Bronze
Mount Surface Mount
Number of Circuits 20
Number of Contacts 20
Number of Positions 20
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel (TR)
Pitch 1 mm
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination SMD/SMT
Voltage Rating 50 V
Voltage Rating (DC) 50 V
Win Source Part Number 997457-52793-2070
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52793-2070 CAD Model

Description

The 997457-52793-2070 is a 20-position FFC/FPC connector manufactured by Molex, LLC.

  • Pitch: 1mm
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Contact Material: bronze
  • Packaging: tape and reel
  • Housing Material: polyphenylene
  • RoHS Compliant: true
  • Flammability Rating: UL94 V-0
  • Stackable: true
  • Gender: receptacle
  • Contact Location: top
  • Orientation: right-angle
  • Contact Plating: tin
