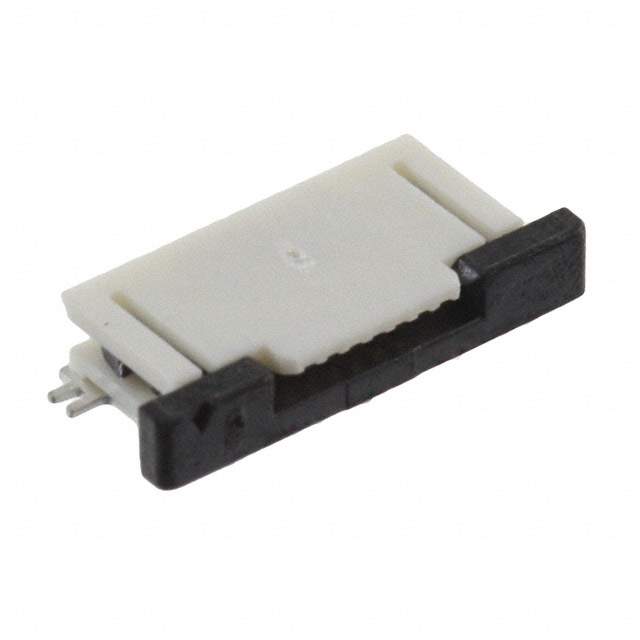

The Molex 52745-0797 is a Flat Flex Cable (FFC/FPC) connector, expertly designed for high-density, space-saving interconnectivity solutions. This connector ensures reliable signal transmission and is ideal for use in a wide range of compact electronic devices.

Applications

• Consumer electronics: Commonly used in smartphones, tablets, and digital cameras to connect displays, touchscreens, and other internal components.
• Automotive industry: Integrated into automotive displays, infotainment systems, and electronic control units for secure signal connections.
• Industrial automation: Employed in control panels, instrumentation, and robotic systems for reliable data and power transmission.
• Medical equipment: Utilized in portable medical devices, diagnostic tools, and patient monitoring systems.
• Office equipment: Found in printers, scanners, and copiers for connecting print heads, scanning modules, and control panels.

Features

• Fine pitch design: Enables high-density connections in a compact footprint.
• Secure locking mechanism: Ensures a reliable connection and prevents accidental disconnections, enhancing device reliability.
• Surface Mount Technology (SMT): Facilitates automated assembly, reducing manufacturing costs and improving production efficiency.
• RoHS compliance: Meets environmental regulations by restricting the use of hazardous substances.
• Durable construction: Designed for long-lasting performance, even in demanding operating conditions.

Benefits

• Space-saving: Allows for the miniaturization of electronic devices, contributing to sleeker and more compact designs.
• Reliable connectivity: Provides stable signal transmission, reducing the risk of data loss and ensuring consistent performance.
• Easy assembly: Simplifies the manufacturing process, saving time and reducing production costs.
• Cost-effective: Offers an optimal balance of performance, reliability, and affordability.
• Versatile application: Suitable for a diverse range of electronic devices and industrial applications.

Additional Details

The Molex 52745-0797 features a specific circuit count (typically 7, based on the part number), with a fine pitch (e.g., 0.5mm or 1.0mm). It's engineered for use with matching FFC/FPC cables to create a robust and reliable connection. The connector's housing is typically made from high-temperature thermoplastic materials, while the contacts are constructed from phosphor bronze or beryllium copper, often with gold plating to ensure optimal conductivity and resistance to corrosion. Designed for reflow soldering processes, it guarantees a strong and dependable connection to the PCB, making it an essential component in modern electronic assemblies.
