Same model may have multiple batches, images only for reference.

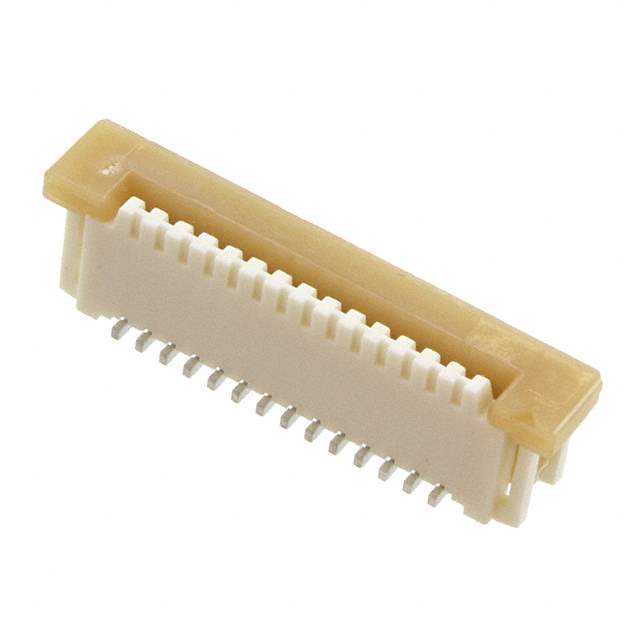

0526101472 Real Image
Same model may have multiple batches, images only for reference.

0526101472

Part No 0526101472
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 14POS 1.00MM SMD / 14 Position FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Molex
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 14
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.226" (5.74mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 125V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 3.94µin (0.10µm)
Mating Cycles 30
Base Product Number 052610
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 0526101472-ND,WM9419CT,Q7256090,0526101472-NDL,526101472,WM9419TR,WM9419DKR,052610-1472,52610-1472
Standard Package 1,000
Win Source Part Number 1333395-0526101472
Ultra Librarian 3D Model Ultra Librarian 0526101472 CAD Model

Description

The Molex 1333395-0526101472 is a FFC, FPC (Flat Flexible) Connector Assembly that has 14 positions with a pitch of 0.039" (1.00mm).

  • Features: Zero Insertion Force (ZIF)
  • Voltage Rating: 125V
