Same model may have multiple batches, images only for reference.

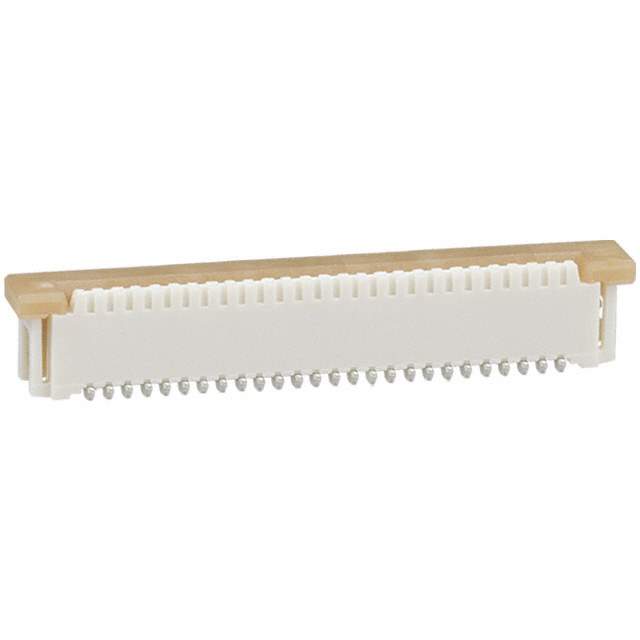

52610-2671 Real Image
Same model may have multiple batches, images only for reference.

52610-2671

Part No 52610-2671
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 26 POS 1mm Solder ST SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin MX
Current Rating 1 A
Depth 3.6 mm
Flammability Rating UL94 V-0
Gender Female
Housing Color Natural
Housing Material Nylon
Insulation Resistance 100 MΩ
Lead Free Yes
Lead Pitch 1 mm
Length 32.6 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 26
Number of Contacts 26
Number of Poles 26
Number of Positions 26
Number of Rows 1
Orientation Vertical
Packaging Cut Tape
Pitch 1 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 125 V
Voltage Rating (AC) 50 V
Voltage Rating (DC) 125 V
Win Source Part Number 1017054-52610-2671
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52610-2671 CAD Model

Description

The Molex 1017054-52610-2671 is a 26-position FFC/FPC connector suitable for surface mount termination.

  • Rows: one
  • Pitch: 1mm
  • Material: nylon
  • Color: natural
  • Current Rating: 1A
  • Voltage Rating: 125V
  • Contact Material: bronze
  • Contact Plating: tin
  • ROHS Compliance: compliant
  • Lead-Free: lead-free
  • Contact Resistance: 20mΩ
  • Temperature Range: -40°C to 85°C
