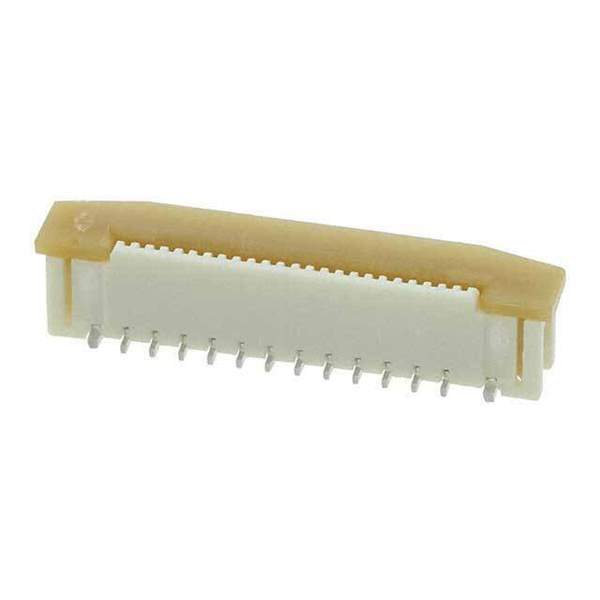

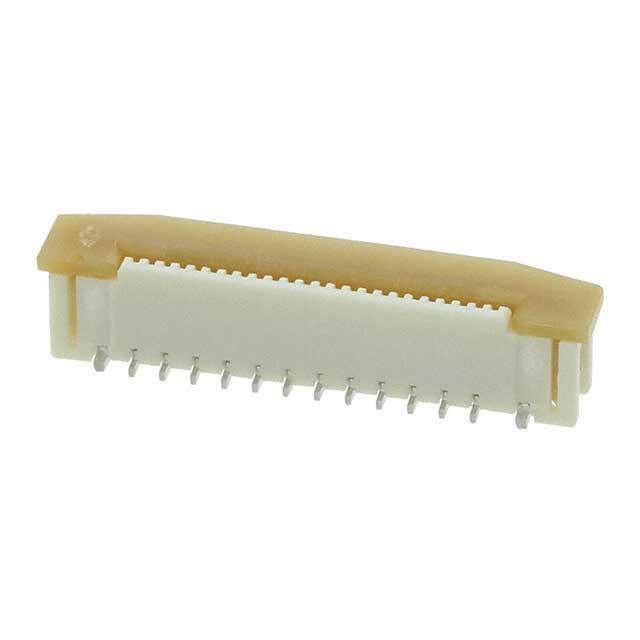

525592452 Real Image
Same model may have multiple batches, images only for reference.

525592452

Part No 525592452
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Molex
Series Easy-On 52559
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.154" (3.90mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 39.4µin (1.00µm)
Mating Cycles 20
Base Product Number 052559
Other Names 052559-2452-C,52559-2452,525592452,WM7986DKR,052559-2452,52559-2452-C,525592452-C,0525592452-C,WM7986CT,WM7986TR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294087-525592452
Ultra Librarian 3D Model Ultra Librarian 525592452 CAD Model

Description

The Molex Easy-On 52559 is a connector that is used in various applications.

  • Positions: 24
  • Pitch: 0.020 inches (0.50mm)
  • Feature: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 39.4µin (1.00µm)
  • Connector/Contact Type: Contacts, Vertical - 1 Sided
  • Flat Flex Type: FFC, FPC
  • Housing Material: Polyamide (PA46), nylon 4/6
  • Actuator Material: Polyphenylene sulfide (PPS)
  • Material Flammability Rating: UL94 V-0
  • Locking Feature: Slide Lock
  • Cable End Type: Straight, Tapered
  • Voltage Rating: 50V
  • Current Rating: 0.5A
