Same model may have multiple batches, images only for reference.

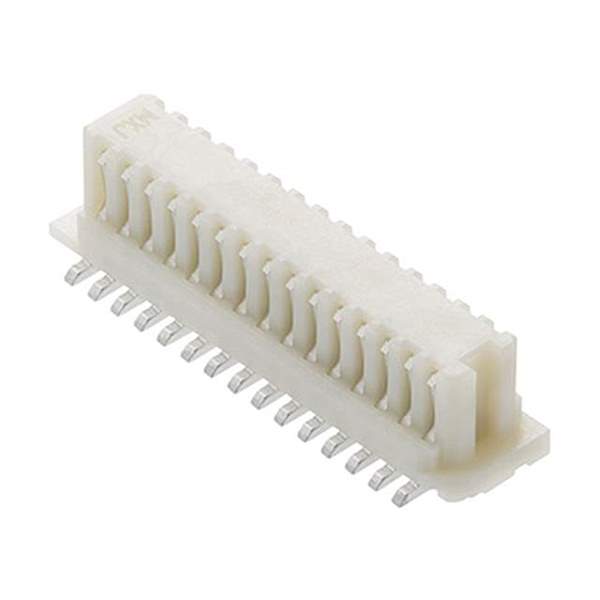

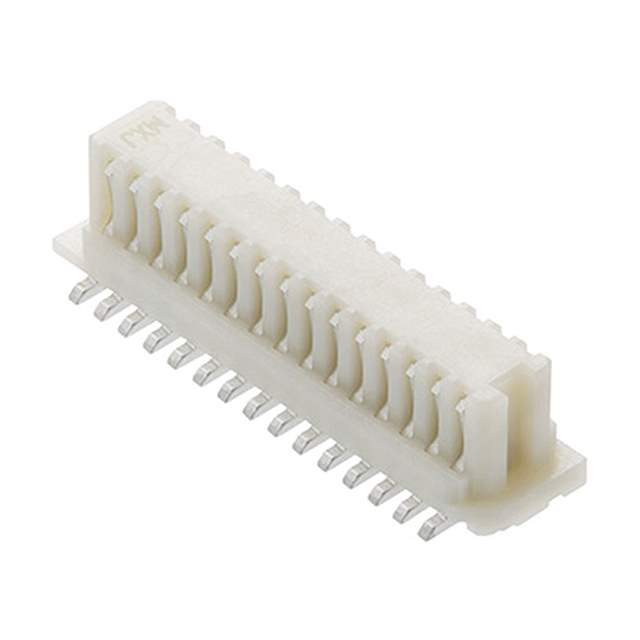

0524651070 Real Image
Same model may have multiple batches, images only for reference.

0524651070

Part No 0524651070
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 10POS SMD TIN / 10 Position Connector Receptacle, Center Strip Contacts Surface Mount Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex
Series 52465
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 10
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Tin
Contact Finish Thickness 120.0µin (3.05µm)
Mated Stacking Heights 4.5mm, 5.65mm, 7mm
Height Above Board 0.140" (3.55mm)
Base Product Number 052465
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339386-0524651070
Ultra Librarian 3D Model Ultra Librarian 0524651070 CAD Model

Description

The Molex 52465 series 10 position, 2-row, rectangular connector is a surface mount receptacle with center strip contacts.

  • Number of Positions: 10
  • Number of Rows: 2
  • Mounting Type: Surface Mount
  • Win Source Part Number: 1339386-0524651070
  • Pitch: 0.031" (0.80mm)
  • Board Guide: Yes
  • Contact Finish: Tin
  • Contact Finish Thickness: 120.0µin (3.05µm)
  • Height Above Board: 0.140" (3.56mm)
  • Packaging: Tape & Reel (TR)
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Application: Mezzanine (Board to Board)
