Same model may have multiple batches, images only for reference.

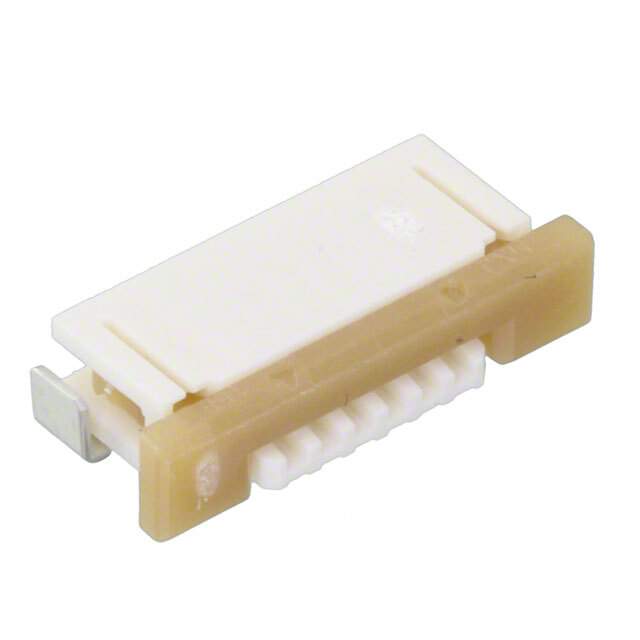

52271-0679 Real Image
Same model may have multiple batches, images only for reference.

52271-0679

Part No 52271-0679
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn RJ-25 F 6 POS 1.02mm Solder RA SMD 6 Terminal 1 Port T/R Cat 3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 500 mA
Depth 6.7 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Height 3 mm
Housing Color Natural
Housing Material Nylon
Insulation Resistance 100 MΩ
Lead Pitch 1 mm
Material Nylon
Max Current Rating 500 mA
Maximum Operating Temperature 85 °C
Max Supply Voltage (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 6
Number of Contacts 6
Number of Pins 6
Number of Poles 6
Number of Positions 6
Number of Rows 1
Orientation Right Angle
Packaging Tape and Reel
Pitch 1 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536694040
Stackable No
Termination Solder
Voltage Rating 50 V
Voltage Rating (AC) 50 V
Voltage Rating (DC) 50 V
Wire/Cable Type Flat Flex
Win Source Part Number 1039102-52271-0679
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52271-0679 CAD Model

Description

The 1039102-52271-0679 is a 6 position female connector from Molex.

  • Connector Type: Flat flexible connector
  • Application: Used for various electronic applications
  • Pitch: 1mm
  • Current Rating: 500mA
  • Mounting: Designed to be mounted on a printed circuit board
  • Packaging: Tape and reel package
  • RoHS Compliant: Yes
  • Positions: 6
