Same model may have multiple batches, images only for reference.

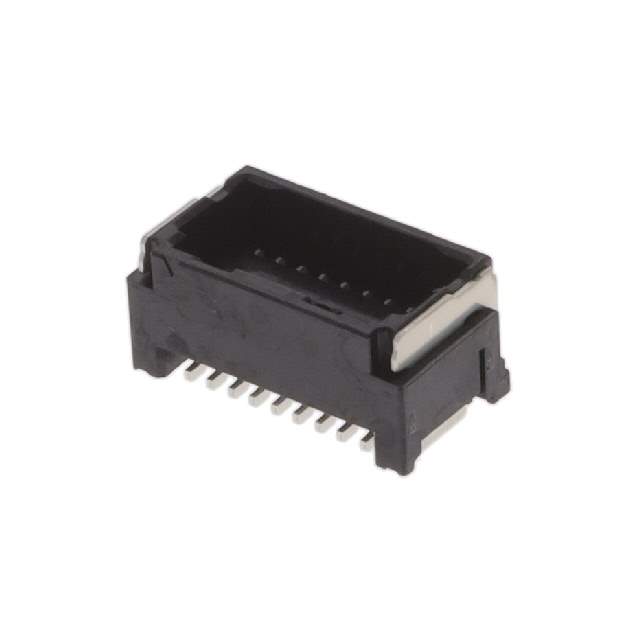

5054331871 Real Image
Same model may have multiple batches, images only for reference.

5054331871

Part No 5054331871
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 18POS 1.25MM / Connector Header Surface Mount 18 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 18
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.285" (7.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC/DC
Mated Stacking Heights 8.6mm
Contact Finish Thickness - Post 39.4µin (1.00µm)
Applications Automotive, General Purpose, Industrial
Base Product Number 505433
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 900-5054331871DKR,900-5054331871CT,505433-1871,5054331871-ND,900-5054331871TR
Standard Package 500
Win Source Part Number 1332835-5054331871
Ultra Librarian 3D Model Ultra Librarian 5054331871 CAD Model

Description

The Molex 1332835-5054331871 is a 18-position male pin header with a 2-row design.

  • Manufacturer: Molex
  • Positions: 18
  • Rows: 2
  • Type: Male Pin Header
  • Feature: Solder retention
  • Fastening: Latch holder
  • Contact Material: Brass
  • Contact Finish: Tin
  • Mounting: Surface mount
  • Pitch: 1.25mm
  • Insulation Material: Polyamide (PA) and nylon
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 50VAC/DC
  • Temperature Range: -40°C to 105°C
  • Applications: Automotive, general purpose, and industrial
  • Package: Reel
  • Quantity: 500 units
