Same model may have multiple batches, images only for reference.

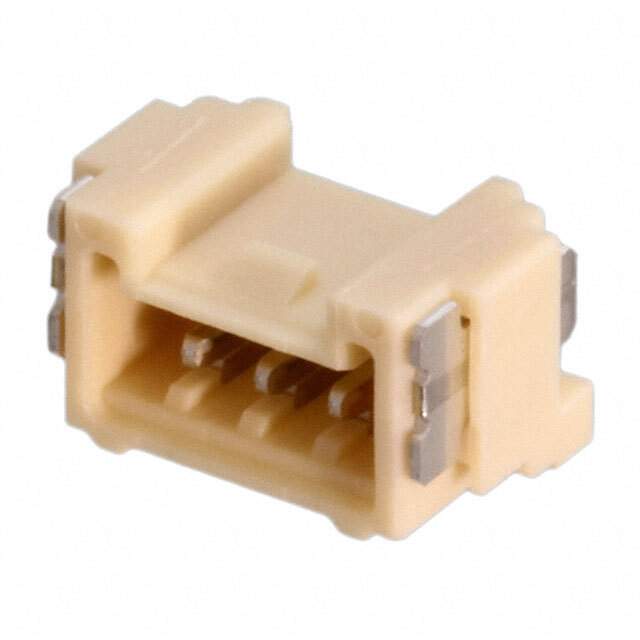

504194-0370 Real Image
Same model may have multiple batches, images only for reference.

504194-0370

Part No 504194-0370
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Micro-Lock 1.25mm Pitch Single-Row Vertical Header, Beige, 3 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Blade Pin
Contact Material Brass
Contact Plating Tin
Country of Origin MY
Current Rating 1.5 A
Fastening Type Latch
Gender Male
Glow Wire Compliant Non-compliant
Mount Surface Mount
Number of Circuits 3
Number of Contacts 3
Number of Positions 3
Number of Rows 1
Orientation Vertical
Packaging Tape & Reel (TR)
Pitch 1.25 mm
Plating Nickel
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1038590-504194-0370
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 504194-0370 CAD Model

Description

The Molex 1038590-504194-0370 is a blade pin connector with three positions and a pitch of 1.25mm.

  • Product Name: Molex 1038590-504194-0370
  • Type: Blade Pin Connector
  • Positions: 3
  • Pitch: 1.25mm
  • Gender: Male
  • Color: Natural
  • Termination: SMD Solder
  • Fastening Type: Latch
  • Current Rating: 1.5A
  • Voltage Rating: 50V
  • Contact Material: Brass
  • Contact Plating: Tin
  • Package/Case: Tape and Reel (TR)
  • Applications: Computers, Telecommunications, Consumer Electronics
