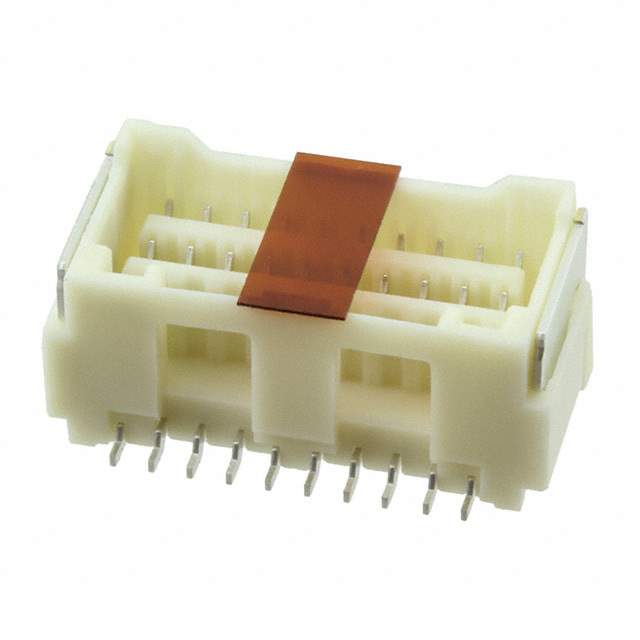

Same model may have multiple batches, images only for reference.

5031542090

Name: 5031542090
Brand: Molex, LLC
SKU: 907049
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	5031542090
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 20POS 0.059 TIN SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	28 Weeks
Features	20 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Tin
Manufacturer	Molex, LLC
Series	CLIK-Mate 503154
Package	Reel - TR
Operating Temperature Range	-40°C ~ 105°C
Mounting	Surface Mount
Family Name	503154
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM14480TR, WM14480CT, WM14480DKR, 5031542090-ND, 503154-2090
Quantity per package	450
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	907049-5031542090
Ultra Librarian 3D Model	Ultra Librarian 5031542090 CAD Model

Description

The Molex 907049-5031542090 is a surface mount connector with 20 position receptacle and a pitch of 0.059” (1.50mm).

Manufacturer: Molex
Series: CLIK-Mate 503154
Connector Type: Surface Mount Connector, Receptacle
Positions: 20
Pitch: 0.059” (1.50mm)
Contact Finish: Tin
Mounting Type: Surface Mount
Operating Temperature: -40°C to 105°C
Lead-Free: Yes
RoHS Compliant: Yes
Supply and Demand: Balanced
Quantity per Package: 450
Estimated Production Lead Time: 28 weeks
