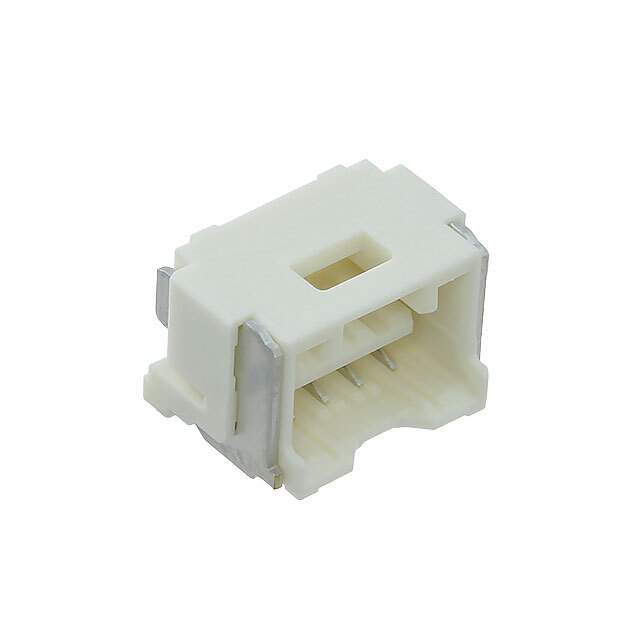

5025840460 Real Image
Same model may have multiple batches, images only for reference.

5025840460

Part No 5025840460
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 4POS 0.059 TIN SMD / 4 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Molex, LLC
Series CLIK-Mate 502584
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.059" (1.50mm)
Number of Rows 1
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Insulation Color Beige
Insulation Height 0.285" (7.25mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place, Solder Retention
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Resin
Contact Material Copper Alloy
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number 502584
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856289-5025840460
Ultra Librarian 3D Model Ultra Librarian 5025840460 CAD Model

Description

The 856289-5025840460 is a header connector designed for rectangular connector applications.

  • Series: CLIK-Mate 502584
  • Manufacturer: Molex, LLC
  • Positions: 4
  • Capabilities: Pick and place and solder retention
  • Connector Type: Receptacle connector
  • Contact Type: Forked contacts
  • Configuration: Single row
  • Package: Tape and reel
  • Standard Package: 900 pieces
  • Contact Material: Copper alloy
  • Contact Finish: Tin
  • Applications: Automotive, general purpose, industrial, lighting, and medical
  • ECCN: EAR99
  • REACH: Unaffected status
  • MSL Level: 1
  • HTSUS Code: 8536.69.4040
