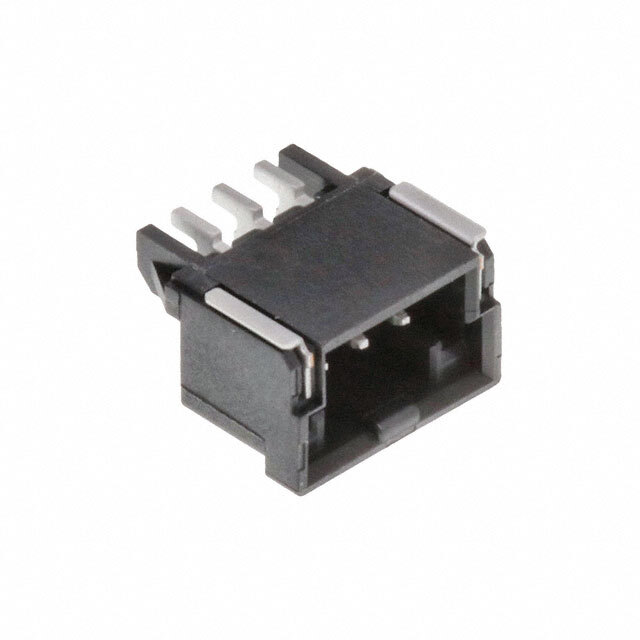

5023520301

Name: 5023520301
Brand: Molex, LLC
SKU: 1480282
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5023520301
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Molex
Series	DuraClik 502352
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Insulation Height	0.252" (6.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Applications	Automotive, Industrial
Base Product Number	502352
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1480282-5023520301
Ultra Librarian 3D Model	Ultra Librarian 5023520301 CAD Model
