Same model may have multiple batches, images only for reference.

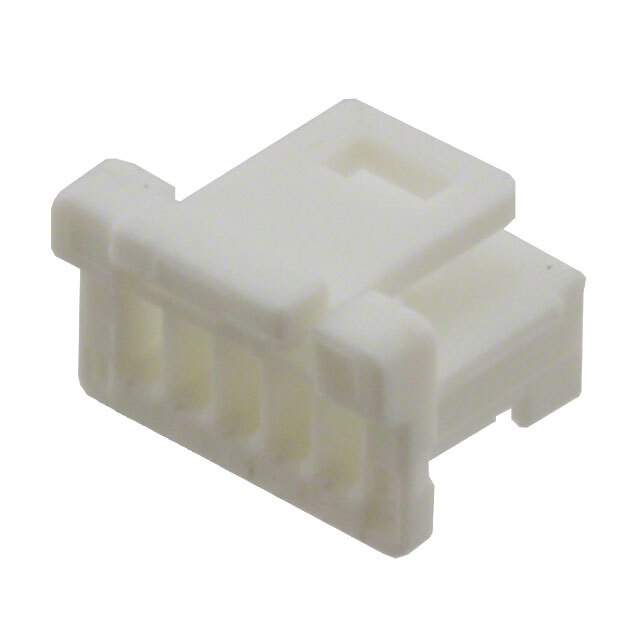

501939-0500 Real Image
Same model may have multiple batches, images only for reference.

501939-0500

Part No 501939-0500
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Housing, Positive Lock, 4 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Connector Type Receptacle, Socket
Contact Gender Female
Country of Origin MY
Current Rating 1 A
Depth 6 mm
Fastening Type Latch
Gender Receptacle
Housing Color White
Housing Material Nylon
Length 6.7 mm
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Free Hanging
Number of Contacts 5
Number of Positions 5
Number of Rows 1
Orientation Straight
Pitch 1 mm
REACH SVHC Unknown
RoHS Compliant
Termination Crimp
Weight 61.093222 mg
Wire/Cable Gauge 32 AWG
Wire Gauge (Max) 32 AWG
Wire Gauge (Min) 28 AWG
Win Source Part Number 1193072-501939-0500
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 501939-0500 CAD Model

Description

The 501939-0500 is a 5-position crimp socket connector that is manufactured by Molex, LLC.

  • Supply and Demand Status: Limited
  • Orientation: Straight
  • Fastening Type: Latch
  • Current Rating: 1A
  • Maximum Operating Temperature: 85°C
