Same model may have multiple batches, images only for reference.

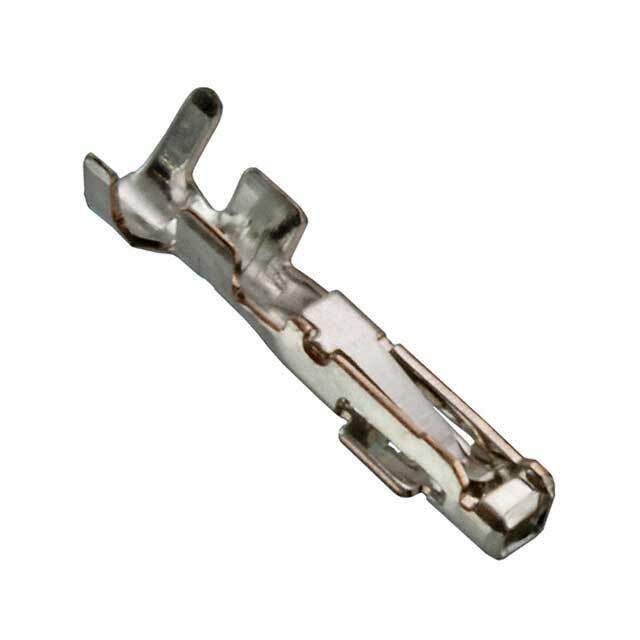

5016471000 Real Image
Same model may have multiple batches, images only for reference.

5016471000

Part No 5016471000
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN SOCKET 22-26AWG CRIMP TIN / Socket Contact Tin 22-26 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer Molex
Packaging Reel - TR
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Tin
Base Product Number 501647
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 501647-1000-C,WM6057TR,WM6057CT,5016471000-C,0501647-1000,05016471000,05016471000-C,0501647-1000-C,501647-1000
Standard Package 16,000
Win Source Part Number 1333516-5016471000
Ultra Librarian 3D Model Ultra Librarian 5016471000 CAD Model

Description

The Molex 1333516-5016471000 is a rectangular connector contact with a socket pin or socket type.

  • Pin or Socket: Socket
  • Packaging: Reel
  • Standard Package: 16,000
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • MSL Level: 1 (unlimited)
  • Manufacturer: Molex
