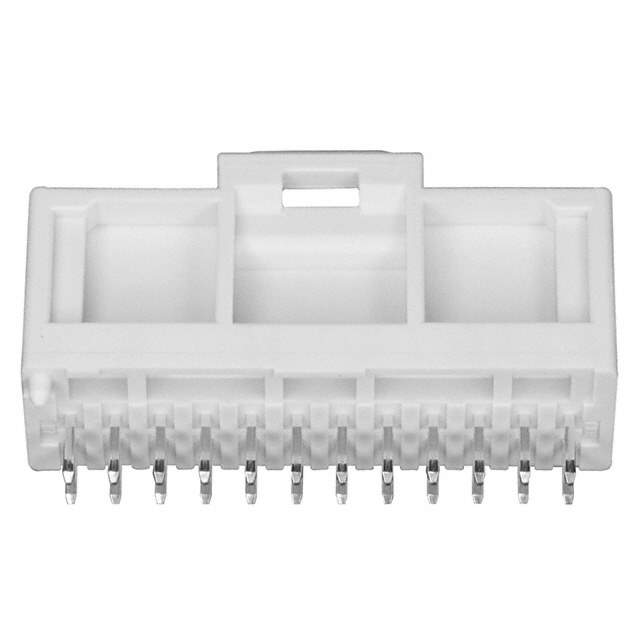

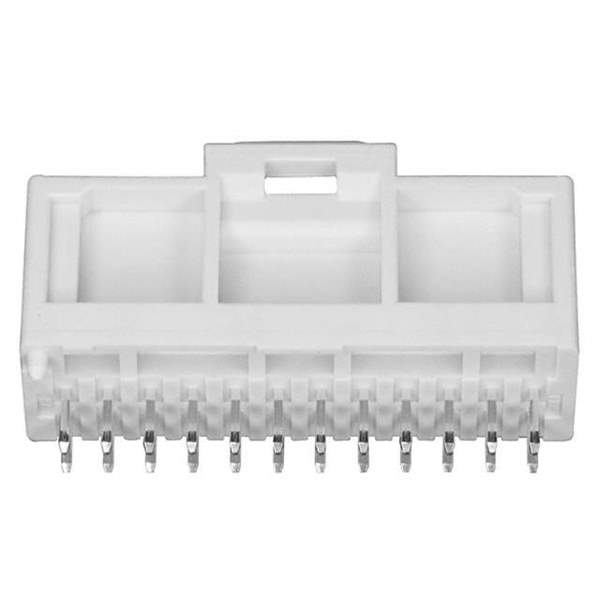

Part No 5016452420
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.00mm Pitch iGrid Wire-to-Board Header Dual Row Vertical with PCB Locator 24 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Male Pin
Contact Material Brass
Contact Plating Tin
Country of Origin VN
Current Rating 2 A
Depth 8.2 mm
Fastening Type Latch
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Polyamide
Lead Pitch 2 mm
Length 26 mm
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -25 °C
Mount Through Hole
Number of Circuits 24
Number of Contacts 24
Number of Positions 24
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
RoHS Compliant
Row Spacing 2.0066 mm
Termination Solder
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1186231-5016452420
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5016452420 CAD Model

Description

The Molex 1186231-5016452420 is a natural male pin connector.

  • Pitch: 2mm
  • Positions: 24
  • Current Rating: 2A
  • Voltage Rating: 250V
  • Contact Material: brass
  • Housing Material: polyamide
  • Contact Plating: tin
  • RoHS Compliant: yes
  • Maximum Operating Temperature: 85 °C
  • Mounting: through hole
  • Lead Pitch: 2mm
