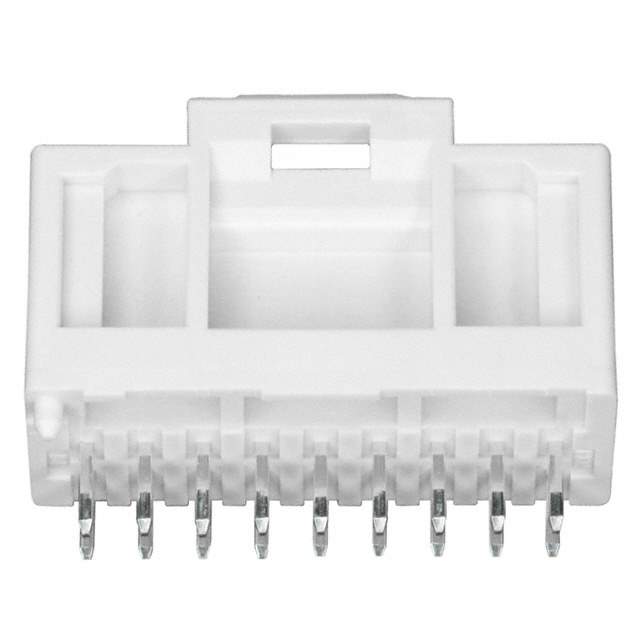

Part No 501645-1820
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 18 POS 2mm Solder ST Thru-Hole iGrid™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Male Pin
Contact Material Brass
Contact Plating Tin
Country of Origin VN
Current Rating 2 A
Depth 8.2 mm
Fastening Type Latch
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Nylon
Lead Pitch 2 mm
Length 20 mm
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -25 °C
Mount Through Hole
Number of Circuits 18
Number of Contacts 18
Number of Positions 18
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
RoHS Compliant
Row Spacing 2.0066 mm
Termination Solder
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1127912-501645-1820
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 501645-1820 CAD Model

Description

The Molex, LLC is a 2-row, 18-position male pin connector that is widely used in the electronic industry.

  • Product is designed for: circular connectors - housings
  • Popularity: medium
  • Supply and demand status: limited
  • Voltage rating: 250V AC/DC
  • Current rating: 2A
  • Mounting type: through-hole
  • Temperature range: -25°C to 85°C
