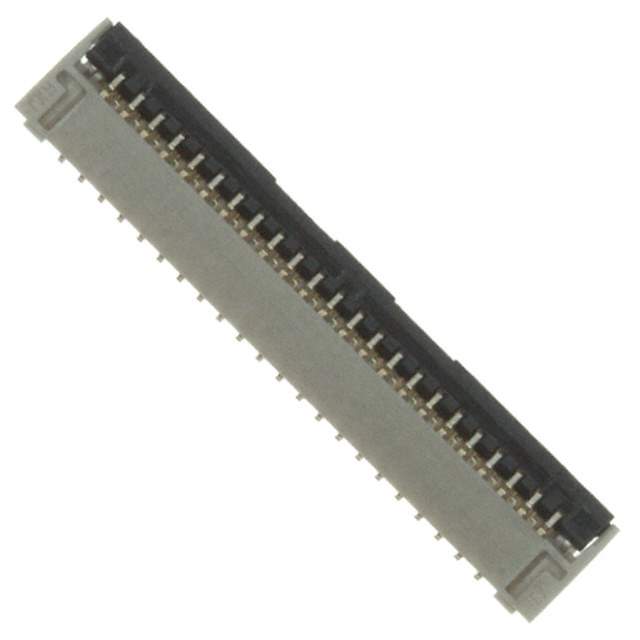

5016284591 Real Image
Same model may have multiple batches, images only for reference.

5016284591

Part No 5016284591
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Molex
Series Easy-On 501628
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 45
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Mating Cycles 10
Other Names 23-501628-4591CT,WM6649TR,WM6649TR,WM6649CT,23-501628-4591DKR,23-501628-4591DKR,501628-4591,WM2188,23-5016284591CT,501628-4591,WM6649CT,23-5016284591DKR,WM6649DKR,23-501628-4591CT,501628-4591-C,WM6649DKR,23-5016284591TR,WM6649CTINACTIVE,WM2188
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294090-5016284591
Ultra Librarian 3D Model Ultra Librarian 5016284591 CAD Model

Description

The Molex Easy-On 501628 1294090-5016284591 is a flat flexible connector with 45 positions and a pitch of 0.012 inches (0.30mm).

  • Locking Feature: Flip Lock
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Category: Connectors, Interconnects
  • Status: Obsolete
  • Supply and Demand Status: Limited
