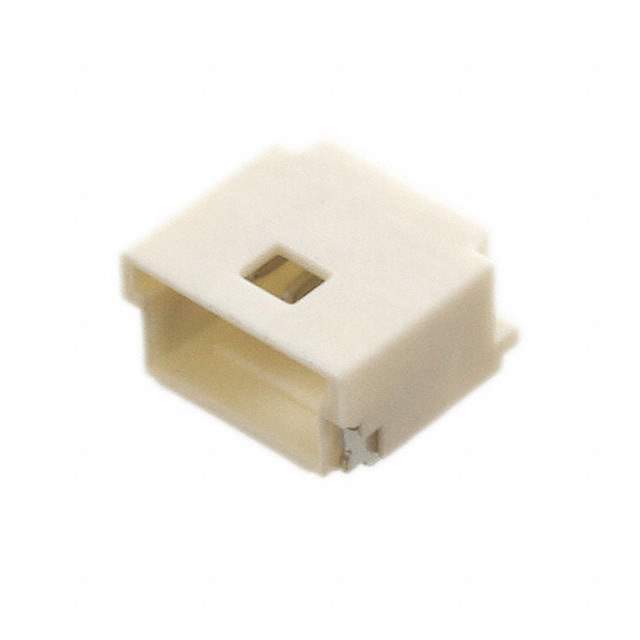

5015680407

Name: 5015680407
Brand: Molex, LLC
SKU: 849850
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5015680407
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 4POS 1MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	Pico-Clasp 501568
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Insulation Height	0.126" (3.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	40.0µin (1.02µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	General Purpose
Base Product Number	501568
Standard Package	1,700 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849850-5015680407
Ultra Librarian 3D Model	Ultra Librarian 5015680407 CAD Model

Description

The Pico-Clasp 501568 series is a 4-position rectangular connector header with male pins from Molex, LLC.

Positions: 4
Pin Gender: Male
Features: Solder Retention
Contact Material: Phosphor Bronze
Voltage Rating: - volts
Insulation Material: Polyamide (PA) and Nylon
Application: General Purpose
Mating Pitch: 0.039 inches (1.00mm)
Contact Finish: Tin
Insulation Color: Natural
Mounting Type: Surface Mount, Right Angle
Design: Shrouded (4 Walls)
Insulation Height: 0.126 inches (3.20mm)
Shape: Square
Packaging: Tape & Reel
Standard Package Quantity: 1,700 pcs
