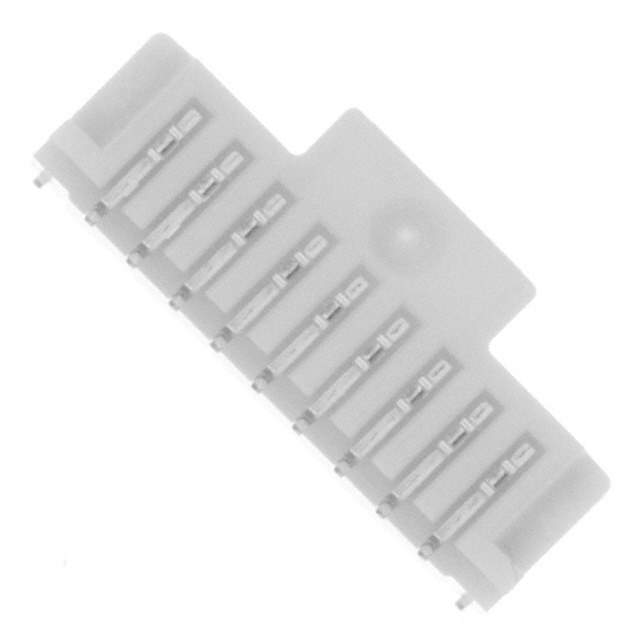

501568-0907 Real Image
Same model may have multiple batches, images only for reference.

501568-0907

Part No 501568-0907
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 1MM 9POS SMD R/A
Datasheet
501568-0907 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 9
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.185" (4.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 40μin (1.02μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications General Purpose
Win Source Part Number 112914-501568-0907
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 501568-0907 CAD Model

Description

Product Overview

The 501568-0907 is a high-quality electronic component known for its reliability and efficiency. An ideal choice for various applications, this component provides exceptional performance in demanding environments.

Features and Benefits

  • High durability and long-lasting performance
  • Compact design for space-saving installation
  • Easy integration with other components
  • Cost-effective solution for budget-conscious projects

Applications

  • Consumer electronics projects
  • Embedded systems
  • Robotics and automation
  • Prototyping and development

This component is perfect for engineers and hobbyists looking for reliability and ease of use in their electronic designs.
