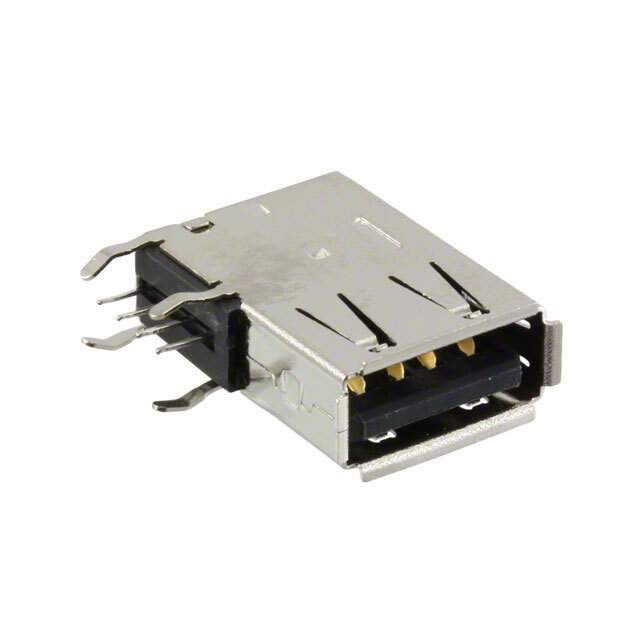

48204-0001 Real Image
Same model may have multiple batches, images only for reference.

48204-0001

Part No 48204-0001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description Conn USB Type A RCP 4 POS Solder RA Thru-Hole 4 Terminal 1 Port Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, USB
Contact Material Bronze, Gold, Nickel
Contact Plating Gold
Country of Origin US
Current Rating 1 A
Depth 19.25 mm
Features Shielded
Flammability Rating UL94 V-0
Gender Female
Height 14.84 mm
Housing Material Polyester
Insulation Resistance 1 GΩ
Length 7.2 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 30 V
Max Voltage Rating (DC) 3.03 kV
Min Operating Temperature -55 °C
Number of Circuits 4
Number of Contacts 4
Number of Pins 2
Number of Ports 1
Number of Rows 3
Number of Terminals 4
Orientation Vertical
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536694040, 8536694040
Termination Solder
USB Standard USB 2.0
Voltage Rating 30 V
Voltage Rating (AC) 30 V
Win Source Part Number 1021927-48204-0001
Categories USB,DVI,HDMI Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 48204-0001 CAD Model

Description

The 1021927-48204-0001 from Molex, LLC is a high-quality USB connector that is perfect for various applications.

  • Type: Receptacle
  • Pitch: 2mm
  • Color: Black
  • Shielded: Yes
  • Rows: 3
  • Termination: Solder
  • Contact Material: Bronze, gold, and nickel
  • Voltage Rating: 30V
  • Current Rating: 1A
  • Gender: Female
  • Length: 7.2mm
  • Housing Material: Polyester
  • Circuits: 4
  • Orientation: Vertical
  • Contact Plating: Gold
  • RoHS: Compliant
  • Temperature Range: -55 °C to 85 °C
