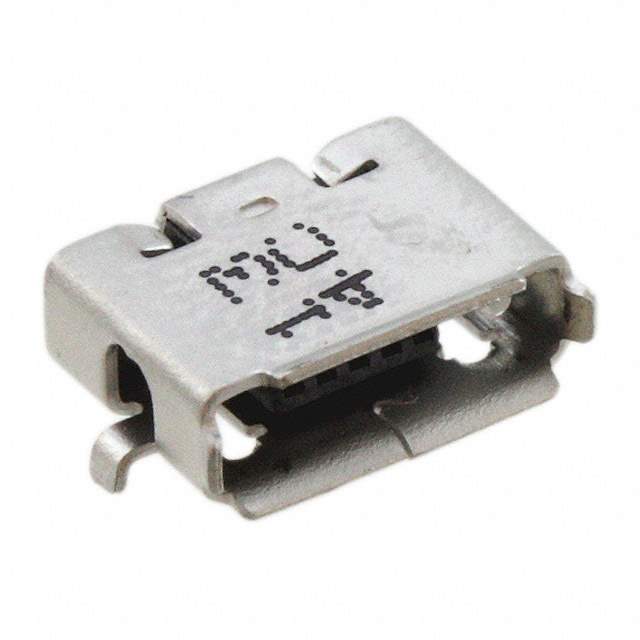

47590-0001

Name: 47590-0001
Brand: Molex, LLC
SKU: 1038786
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	47590-0001
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	RightAngle SMT TypeABVersion 2.0 Micro USB Conn Skt; 30Vac; 1.8A 47650 MICRO-USB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Connector Type	Receptacle, USB
Contact Material	Copper
Contact Plating	Gold
Contact Resistance	40 mΩ
Country of Origin	US
Current Rating	1.8 A
Depth	5.8 mm
Gender	Female
Height	3.1 mm
Housing Material	Polymer
Length	8.65 mm
Maximum Operating Temperature	85 °C
Max Voltage Rating (AC)	100 V
Min Operating Temperature	-30 °C
Mount	Surface Mount
Number of Circuits	5
Number of Contacts	5
Number of Pins	5
Number of Ports	1
Number of Rows	1
Number of Terminals	5
Orientation	Right Angle
Packaging	Tape & Reel
Pitch	650 µm
Plating	Gold
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050, 8536695050
Termination	Solder
USB Standard	USB 2.0
Voltage Rating	30 V
Voltage Rating (AC)	30 V
Weight	9.071847 g
Width	6.35 mm
Win Source Part Number	1038786-47590-0001
Categories	USB,DVI,HDMI Connectors
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 47590-0001 CAD Model

Description

The 1038786-47590-0001 is a USB receptacle connector from Molex, LLC.

Pitch: 650 µm
Color: Black
Current Rating: 1.8A
Voltage Rating: 30V
Contacts: Five
Gender: Female
Package: Tape and reel
Termination: Solder
Contact Material: Copper
Contact Plating: Gold
Housing Material: Polymer
Orientation: Right angle
RoHS Compliant: Yes
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: 85 °C
Suitable for: Use in USB, DVI, and HDMI connectors
