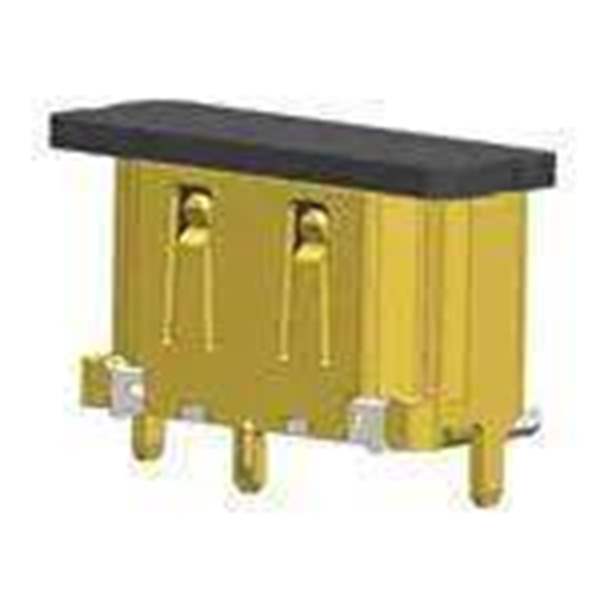

Part No 47659-1100
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description HDMI, Displayport & DVI Connectors HDMI REC VERTICAL SMT TYPE W/HGHT 8.5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196738-47659-1100
Manufacturer Molex
Category HDMI, Displayport & DVI Connectors
Gender Female
Number of Positions 19 Position
Termination Style SMD/SMT
Mounting Style PCB Mount
Packaging Reel
Voltage Rating 40 VDC
Operating Temperature (Max) + 85 C
Operating Temperature (Min) - 20 C
Ultra Librarian 3D Model Ultra Librarian 47659-1100 CAD Model

Description

The HDMI, Displayport & DVI Connector from Molex is a high-quality product designed for reliable and efficient connections.

  • Package: Reel
  • Positions: 19
  • Termination Style: Surface Mount
  • Mounting Type: PCB Mount
  • Voltage Rating: 40VDC
  • Operating Temperature: -20°C to +85°C
