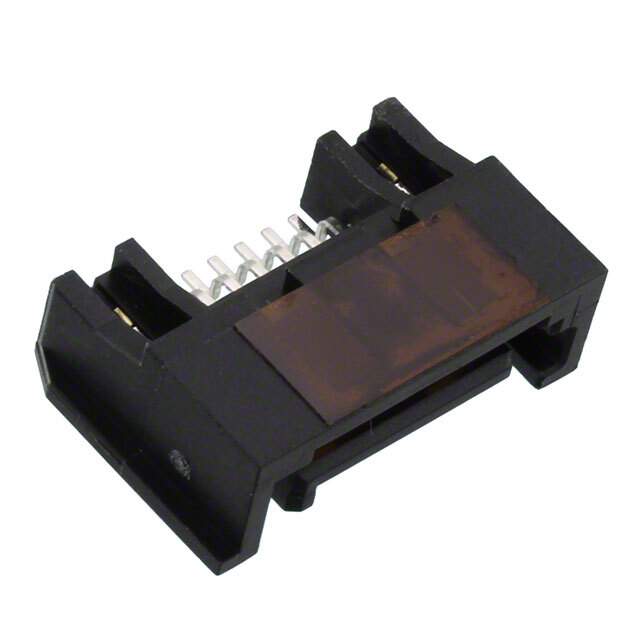

47080-4005 Real Image
Same model may have multiple batches, images only for reference.

47080-4005

Part No 47080-4005
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn.; Rect./PCB; Header; Serial ATA; 7 Cir.; Rt. Angle; Signal w/Peg; Locking Latch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type SATA
Contact Material Copper
Contact Plating Gold
Country of Origin US
Current Rating 1.5 A
Depth 11.56 mm
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Plastic
Lead Free Yes
Lead Pitch 1.27 mm
Length 17.54 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -35 °C
Mount Surface Mount
Number of Circuits 7
Number of Contacts 7
Number of Ports 1
Number of Positions 7
Number of Rows 1
Number of Terminals 7
Orientation Right Angle
Packaging Cut Tape
Pitch 1.27 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 15 V
Voltage Rating (DC) 15 V
Win Source Part Number 987740-47080-4005
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 47080-4005 CAD Model

Description

The 987740-47080-4005 is a seven-position SATA connector from Molex, LLC.
