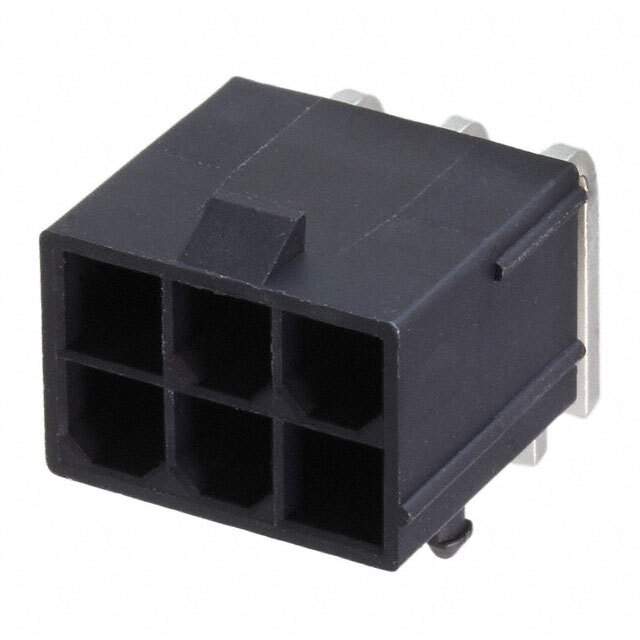

0455580003 Real Image
Same model may have multiple batches, images only for reference.

0455580003

Part No 0455580003
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 4.2MM / Connector Header Through Hole, Right Angle 6 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Mini-Fit Jr 45558
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA) , Nylon
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 045558
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340827-0455580003
Ultra Librarian 3D Model Ultra Librarian 0455580003 CAD Model

Description

The Molex 1340827-0455580003 is a 6-position male pin header with a 2-row design.

  • Positions: 6
  • Rows: 2
  • Design: Male Pin Header
  • Features: Board Lock
  • Material: Polyamide (PA), Nylon
  • Voltage Rating: 600V
  • Current Rating: 8A
  • Applications: General Purpose, Industrial, Telecommunications
  • Pitch: 4.20mm
  • Mounting: Through Hole or Right Angle
  • Insulation Color: Black
  • Flammability Rating: UL94 V-0
  • Temperature Range: -40°C to 105°C
  • Package: Bulk
