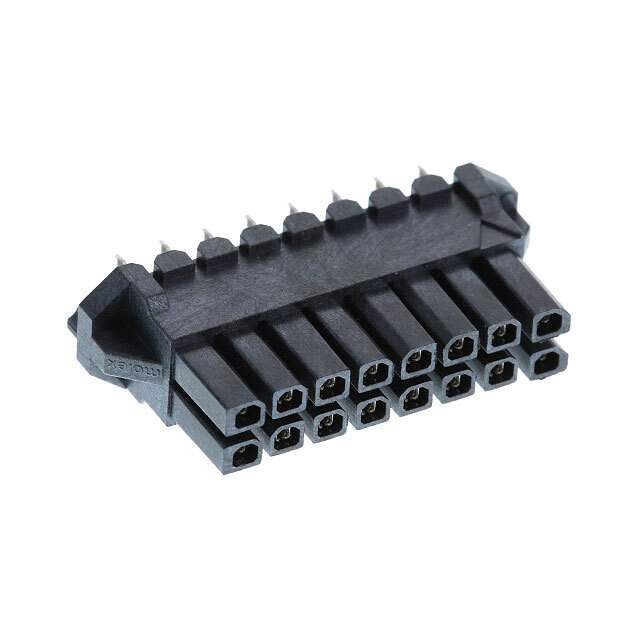

0447691601 Real Image
Same model may have multiple batches, images only for reference.

0447691601

Part No 0447691601
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 16POS 0.118 TIN PCB / 16 Position Receptacle Connector 0.118" (3.00mm) Through Hole Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer Molex
Packaging Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.118" (3.00mm)
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Insulation Color Black
Insulation Height 0.535" (13.60mm)
Contact Length - Post 0.134" (3.40mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 16.86mm
Features Blind Mating, Board Guide
Current Rating (Amps) 5A
Voltage Rating 250VAC
Applications General Purpose, Telecommunications
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 044769
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 044769-1601,WM1959-NDR,44769-1601,23-0447691601,WM1959-ND,44769-1601-TR55,44769-1601-E,0447691601-E,447691601,447691601-E,044769-1601-E,WM1959
Standard Package 1
Win Source Part Number 1332998-0447691601
Ultra Librarian 3D Model Ultra Librarian 0447691601 CAD Model

Description

The Molex 1332998-0447691601 is a 16-position header connector with blind mating and board guide feature.

  • Color: Black
  • Pitch: 0.118” (3.00mm)
  • Row Spacing: 0.118” (3.00mm)
  • Fastening Type: Push-Pull
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 105°C
  • Application: General Purpose and Telecommunications
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • ROHS3 Compliant: Yes
