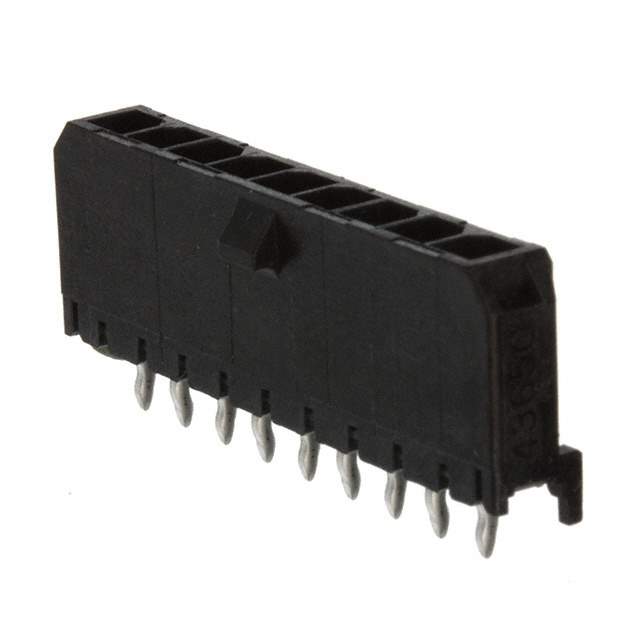

0436500916 Real Image
Same model may have multiple batches, images only for reference.

0436500916

Part No 0436500916
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 9POS 3MM / Connector Header Through Hole 9 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043650
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM2479,WM2479-NDR,WM2479-ND,43650-0916,43650-0916-TR60,23-0436500916,436500916
Standard Package 1
Win Source Part Number 1332386-0436500916
Ultra Librarian 3D Model Ultra Librarian 0436500916 CAD Model

Description

The 0436500916 from Molex is a 9-position male pin header connector.

  • Positions: 9
  • Pin Gender: Male
  • Pitch: 0.118 inches
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin
  • Design: Shrouded 4-wall
  • Style: Board-to-cable/wire
  • Maximum Insulation Height: 0.390 inches
  • Insulation Material: Liquid crystal polymer (LCP) with glass fill
  • Mounting Type: Through-hole
  • Package: Tray
