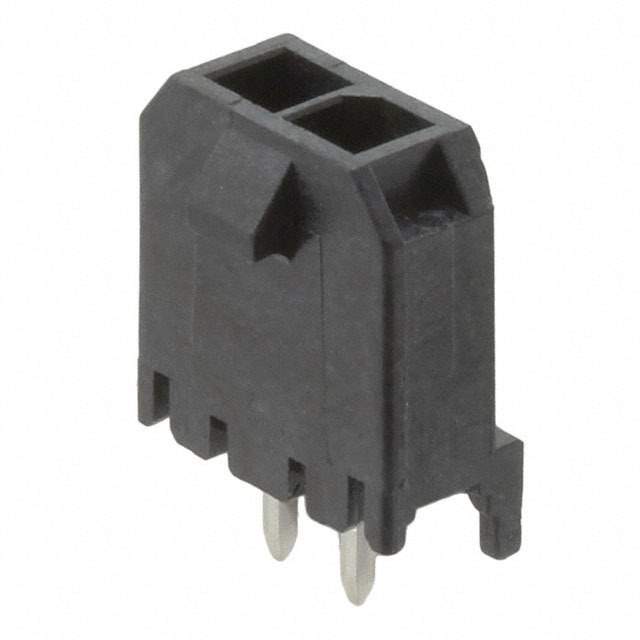

Same model may have multiple batches, images only for reference.

0436500227

Name: 0436500227
Brand: Molex, LLC
SKU: 1351456
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0436500227
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 3MM / Connector Header Through Hole 2 position 0.118" (3.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Micro-Fit 3.0 43650
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.125" (3.18mm)
Insulation Height	0.390" (9.91mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP) , Glass Filled
Features	Board Guide
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Mated Stacking Heights	17.56mm
Applications	General Purpose, Medical, Military, Telecommunications
Base Product Number	043650
Standard Package	3,264
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351456-0436500227
Ultra Librarian 3D Model	Ultra Librarian 0436500227 CAD Model

Alternative Products

Description

This male pin header connector from Molex is part of the Micro-Fit 3.0 43650 series.

Series: Micro-Fit 3.0 43650
Number of Positions: 2
Contact Shape: Square
Style: Board-to-Cable/Wire
Housing Material: Liquid Crystal Polymer (LCP)
Housing Material Attribute: Glass Filled
Contact Finish: Tin
Contact Finish Thickness: 100.0µin (2.54µm)
Packaging: Tray
Standard Package: 3,264
ECCN: EAR99
HTSUS: 8536.69.4040
